DCT (M8-M24) : CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes.

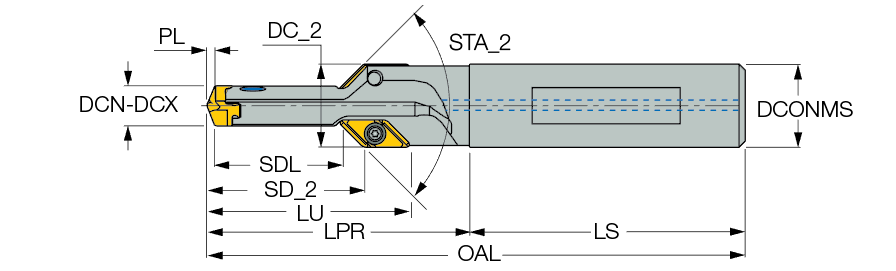

Representative Image

Designation	DCN	Dnominal	DCX	DC_2	DCONMS	SDL	LU	LPR	OAL	LS	STA_2	PL	SSC	FTDZ	SD_2	MIID	MIID_2	DC	ZEFF	CSP	HAND	CICT	NOF	CCMS	GICAT	GIREM
DCT 068-021-14B-M8	6.80	6.80	7.40	13.90	14.00	20.9	31.70	43.10	88.14	45.0	90.0	1.240	6.8	M8	25.74	IDI 068	AOMT 06	6.80~	2~	1~	R~	1~	2~	ZYL11G1400h$06~	3201003	Reduce recommended feed for DCT 6.8 mm drills by 10%
DCT 085-026-14B-M10	8.30	8.50	8.90	14.00	14.00	26.3	36.60	48.00	93.05	45.0	90.0	1.550	8.0	M10	30.55	IDI 085	AOMT 06	8.50~	2~	1~	R~	1~	2~	ZYL11G1400h$06~	3201004
DCT 102-030-14B-M12	10.00	10.20	10.90	14.00	14.00	30.0	39.80	53.90	98.86	45.0	90.0	1.860	10.0	M12	33.76	IDI 102	AOMT 06	10.20~	2~	1~	R~	1~	2~	ZYL11G1400h$06~	3201005
DCT 120-035-16B-M14	12.00	12.00	12.90	16.00	16.00	34.9	45.10	60.20	108.18	48.0	90.0	2.180	12.0	M14	39.08	IDI 120	AOMT 06	12.00~	2~	1~	R~	1~	2~	ZYL11G1600h$06~	3201006
DCT 140-039-18B-M16	14.00	14.00	14.90	18.00	18.00	39.0	49.60	62.50	110.55	48.0	90.0	2.550	14.0	M16	43.55	IDI 140	AOMT 06	14.00~	2~	1~	R~	1~	2~	ZYL11G1800h$06~	3201007
DCT 175-042-20B-M20	17.30	17.50	17.90	21.00	20.00	42.0	53.00	66.20	116.18	50.0	90.0	3.180	17.0	M20	46.98	IDI 175	AOMT 06	17.50~	2~	1~	R~	1~	2~	ZYL11G2000h$06~	3201008
DCT 210-048-25B-M24	21.00	21.00	21.90	25.50	25.00	48.2	60.30	72.80	128.82	56.0	90.0	3.820	21.0	M24	54.32	IDI 210	AOMT 06	21.00~	2~	1~	R~	1~	2~	ZYL11G2500h$06~	3201009

Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions
Do not mount smaller drilling heads other than the specified range of the drill body
