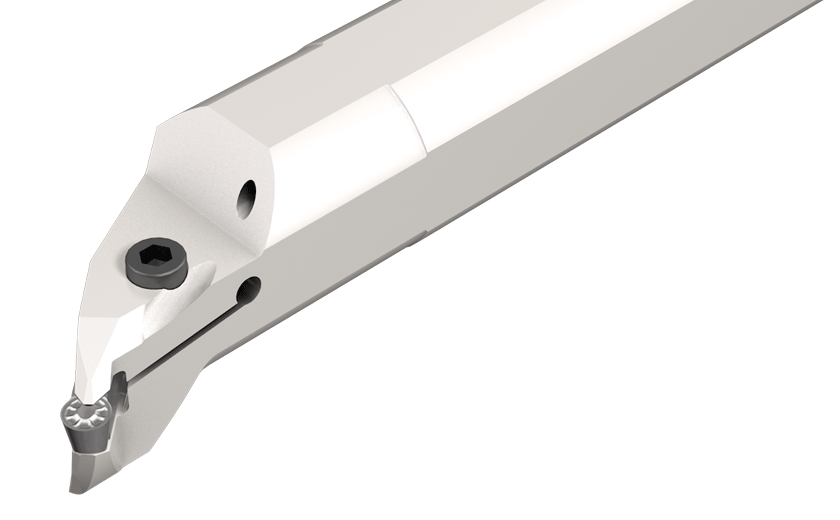

GHIUR/L-UC : 45° undercutting bars for internal turning aluminum wheels.(-)45° Undercutting Bars for Internal Turning Aluminum Wheels(+)
Right-hand shown

Right-hand shown

 COOLANT THROUGH TOOL
Related tools for : GIPA 6.00-3.00-D

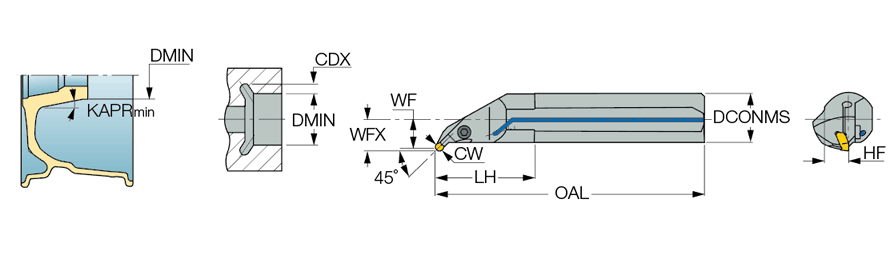

  Designation  GIFUT5CW DCONMS DMIN CDX  OAL LH WFX WF HF CSP  HAND APMX GICATGIREMgiic
  GHIUL 40UC-6    06.0040.0070.000.00 350.0075.023.8024.718.01~L~6.00~2801245 0
  GHIUR 40UC-6    06.0040.0070.000.00 350.0075.023.8024.718.01~R~6.00~2801244 0
  GHIUR 50UC-6    06.0050.0078.000.00 350.0075.028.8029.723.01~R~6.00~2861069 0
