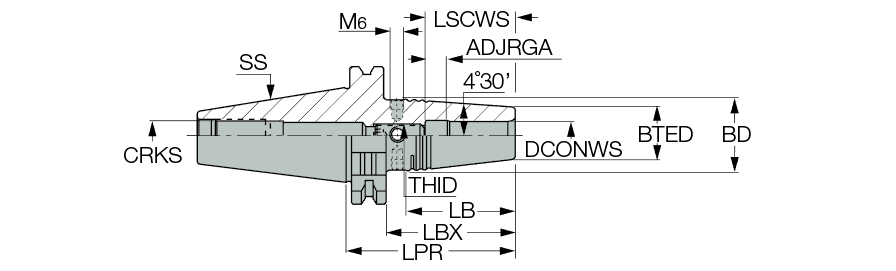

DIN69871-SRKIN : Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance.(-)Thermal Shrink Chucks with DIN 69871 Form AD Taper Shanks for Solid Carbide HSS and Steel Tools(+)

Related holders on machine side for : SD S-A-L90-C12-SP11

Designation		GIFUT5	SS	DCONWS	DCONMS	BTED	BD	LPR	LBX	LB	ADJRGA	LSCWS	THID	Key	CRKS	CSP	OAL	CDI		CCMS	GICAT	GIREM	giic
DIN69871 40 SRKIN 12X80		0	40	12.00	40.00~	24.00	32.00	80.00	60.9	50.80	16.00	47.0	M10	5.00	M16	1~	148.40~	0	1.04	SKG11C0400$$$$~	4504156	Balanced to G2.5/25.000 RPM	0
DIN69871 50 SRKIN 12X 80		0	50	12.00	50.00~	24.00	32.00	80.00	60.9	51.00	11.00	47.0	M10	5.00	M24	1~	181.75~	0	2.79	SKG11C0500$$$$~	4504241	Balanced to G2.5/20.000 RPM	0

Use only inductive heating device for SRKIN holders
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
For shrink units information, Click on "More Info"
