ECR-B3-R : 3 flute, 45° helix solid carbide roughing endmills with 3xd relieved necks for high stock removal rates of aluminum.(-)3 Flute, 45° Helix Solid Carbide Roughing Endmills with 3xD Relieved Necks for High Stock Removal Rates of Aluminum(+)

Representative Image

Aluminum

Representative Image

Aluminum

Related solid tools for : DIN69871 40 MAXIN 20X 95

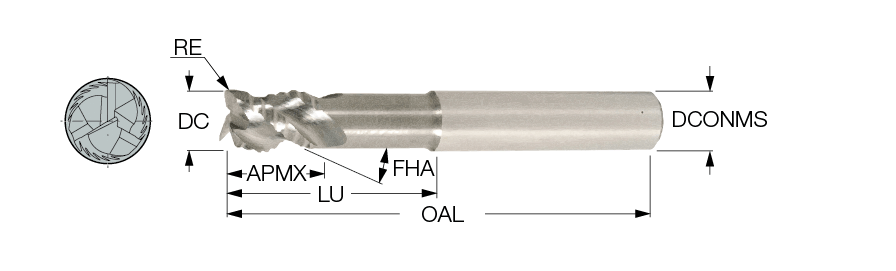

Designation		GIFUT5	DC	DCONMS	LU	OAL	NOF	FHA	RMPX°	APMX	Shank	RE	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	ZEFF	NFMetals	CutEdMat	Coating	GICAT	GIREM	giic	Grade Click on Grade No. for Cutting Speed
ECR-B3 20-17/53C20R02A104		1	20.00	20.00	53.00	104.00	3	45.0	5.0	17.00	C	0.20	0.07	0.25	20.00~	ZYL01G2000h$06~	~	0~	IC08 ~	R~	90.0~	3~	Non Ferrous Metals~	Carbide~	Uncoated ~	5621754		1	IC08
ECR-B3 20-22/80C20R02A150		1	20.00	20.00	80.00	150.00	3	45.0	5.0	22.00	C	0.20	0.07	0.25	20.00~	ZYL01G2000h$06~	~	0~	IC08 ~	R~	90.0~	3~	Non Ferrous Metals~	Carbide~	Uncoated ~	5622071		1	IC08
