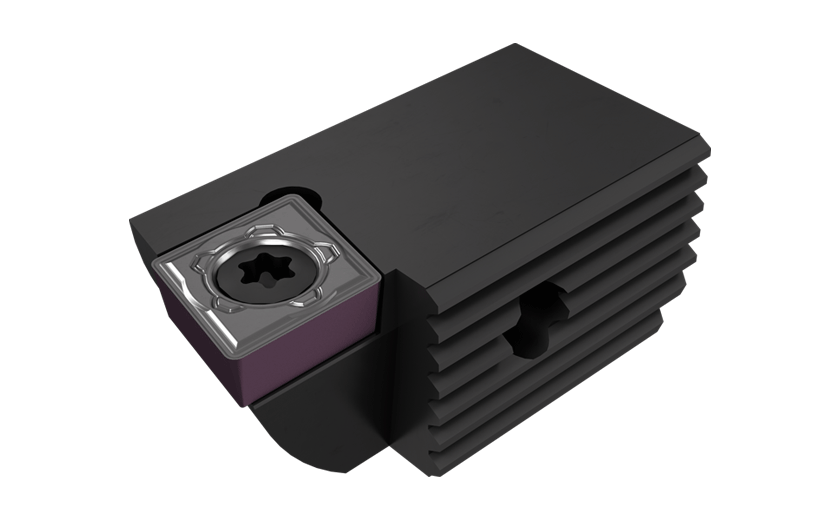

IHSR-BW : Back face turning tools for BHR and TCH AL rough boring heads.(-)Back Face Turning Tools for BHR and TCH AL Rough Boring Heads(+)

Designation	SS	BD	LF	WF	OAL	IC	Insert	DCN	DCX	GICAT
IHSR 20-24 BW	BHR MB16-16	16.00	27.5	10.00	16.00	6.35~	CCMT 0602...	20.00	24.00	4551095
IHSR 23.5-30BW	BHR MB20-20	20.00	32.5	11.00	19.50	6.35~	CCMT 0602...	23.50	30.00	4551096
IHSR 29.5-40BW	BHR MB25-25	25.00	39.0	14.50	24.00	6.35~	CCMT 0602...	29.50	40.00	4551097
IHSR 39-52 BW	BHR MB32-32	32.00	50.0	17.00	32.00	9.52~	CCMT 09T3...	39.00	52.00	4551098
IHSR 51-70 BW	BHR MB40-40	40.00	63.5	21.00	42.00	12.70~	CCMT 1204...	51.00	70.00	4551099
IHSR 69-92 BW	BHR MB50-50	55.00	80.5	24.50	57.00	12.70~	CCMT 1204...	69.00	92.00	4551100
IHSR 91-122 BW	BHR MB63-63	72.00	100.5	28.50	76.00	12.70~	CCMT 1204...	91.00	122.00	4551101
IHSR 121-162 BW	BHR MB80-80	95.00	110.5	31.50	101.00	12.70~	CCMT 1204...	121.00	162.00	4551102
IHSR 161-802 BW	BHR MB80-80	95.00	110.5	31.50	122.00	12.70~	CCMT 1204...	161.00	802.00	4551103

DMIN=(min bore diameter)=(DCN+BD+1)/2
BD=Size of the boring head being used
