IM-MAHPD : Perpendicular holders with an ISO 26622-1(*) tapered shank for MODULAR-GRIP, parting, grooving, turning and facing adapters.(-)Perpendicular Holders with an ISO 26622-1(*) Tapered Shank for Parting, Grooving, Turning and Facing Adapters(+)

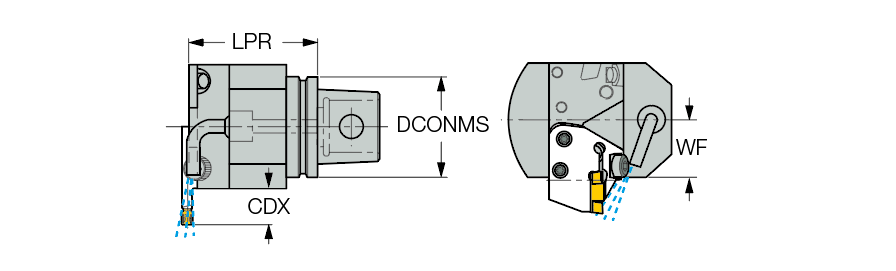

Representative Image
CDX = See specific adapter dimensions
Right-hand shown

Representative Image
CDX = See specific adapter dimensions
Right-hand shown

 COOLANT THROUGH TOOL
  Designation  GIFUT5SFMT DCONMS LPR WF CSP  OAL HAND CCMS DCP  GICATGIREMgiic
  IM40 MAHPD    0Multi-Tasking~40.0044.0025.001~69.00~~KMT01C0400$$$$~02899952 0
  IM50 MAHPD    0Multi-Tasking~50.0045.0026.001~77.00~~KMT01C0500$$$$~02801371 0
  IM63 MAHPD    0Multi-Tasking~63.0045.0033.001~85.00~~KMT01C0630$$$$~02801372 0
(*) Tools with orientation holes in the flange groove can be supplied on request
