GIMY-F : Utility, as pressed, single-ended, full-radius inserts. Used for deep turning and grooving, can cut arcs to 250°. F -type chipformer for low-to-medium feeds.(-)Utility Single-Ended Inserts for Grooving and Profiling Ductile Materials(+)

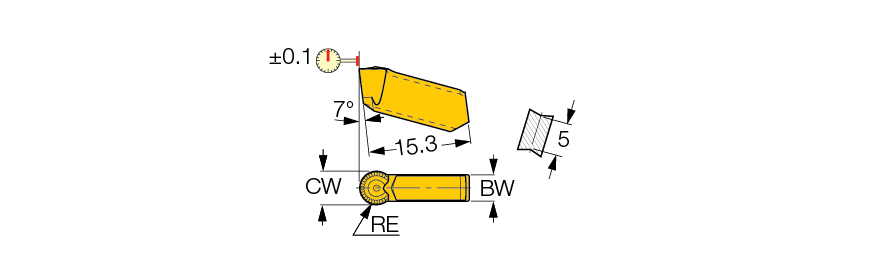

Representative Image

Designation	CW	RE	CWTOL	RETOL	BW	L	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CBMD	CEDC	SC	AN	CDX	COATP	CSP	DAXN	DMIN	GRDMFG	HAND	IFS	INSL	S	S1	Utility	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
GIMY 315F	3.00	1.50	0.050	0.050	2.40	15.30~	1.50	0.18	0.26	0.07	0.13	FT~	1~	L~	7.0~	-~	~	0~	-~	70.00~	IC808 ~	N~	7~	15.30~	-~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	6404551	2	IC808 IC908
GIMY 420F	4.00	2.00	0.050	0.050	3.20	15.30~	2.00	0.20	0.34	0.09	0.17	FT~	1~	L~	7.0~	-~	~	0~	-~	70.00~	IC908 ~	N~	7~	15.30~	-~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	6403719	1	IC908
GIMY 525F	5.00	2.50	0.050	0.050	3.90	15.30~	2.50	0.23	0.42	0.11	0.21	FT~	1~	L~	7.0~	-~	~	0~	-~	70.00~	IC806 ~	N~	7~	15.30~	-~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN "SUMO TEC" ~	6405333	3	IC808 IC908 IC806
GIMY 630F	6.00	3.00	0.050	0.050	5.00	15.30~	3.00	0.24	0.50	0.13	0.25	FT~	1~	L~	7.0~	-~	~	0~	-~	70.00~	IC804 ~	N~	7~	15.30~	-~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN "SUMO TEC" ~	6405334	4	IC808 IC908 IC806 IC804
GIMY 840F	8.00	4.00	0.050	0.050	5.60	15.30~	4.00	0.32	0.67	0.18	0.34	FT~	1~	L~	7.0~	-~	~	0~	-~	70.00~	IC8250~	N~	7~	15.30~	-~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	6405215	2	IC8250 IC908

DMIN for internal applications =70 mm
Can cut arcs to 250°
