EC-B4-R : 4 flute, 45° helix extra-long solid carbide endmills with various corner radii for hardened steel.(-)4 Flute, 45° Helix Extra-Long Solid Carbide Endmills with Various Corner Radii for Hardened Steel(+)

Hard Materials

Related solid tools for : DIN69871 40 MAXIN 20X 95

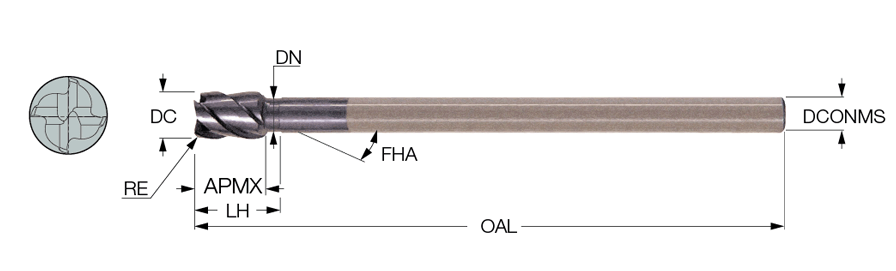

Designation		GIFUT5	DC	DCONMS	RE	APMX	LH	DN	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic	Grade Click on Grade No. for Cutting Speed
EC-B4 22-33C20R.5M200		0	22.00	20.00	0.50	33.00	37.2	19.50	200.00	4	45.0	5.0	C	0.05	0.13	22.00~	ZYL01G2000h$06~	~	0~	IC903 ~	R~	90.0~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5650124		1	IC903
