HSK A63WH-MAHDOR : Holders with HSK exchangeable tapered shanks for MODULAR-GRIP, parting, grooving, turning and facing adapters for mill-turn machines.(-)Holders with HSK Exchangeable Shanks for Parting, Grooving, Turning and Facing Adapters(+)

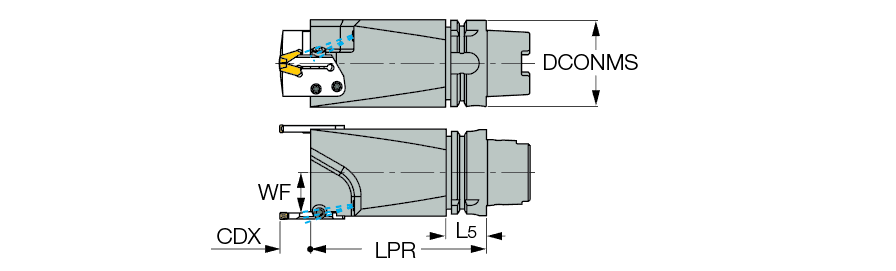

Representative Image
CDX = See specific adapter dimensions
Right-hand shown

Representative Image
CDX = See specific adapter dimensions
Right-hand shown

 MAHDOR  COOLANT THROUGH TOOL
  Designation  GIFUT5SFMT DCONMS WF LPR L5 OAL CSP  HAND DCP  GICATGIREMgiic
  HSK A63WH MAHDOR    0Multi-Tasking~63.0029.0130.0030.00162.00~1~R12801382 0
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
Complies with ICTM standard (ISO 12164-3)
