MM S-ER : Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation


Related holders for : MM HC120C13R1.0-2T08

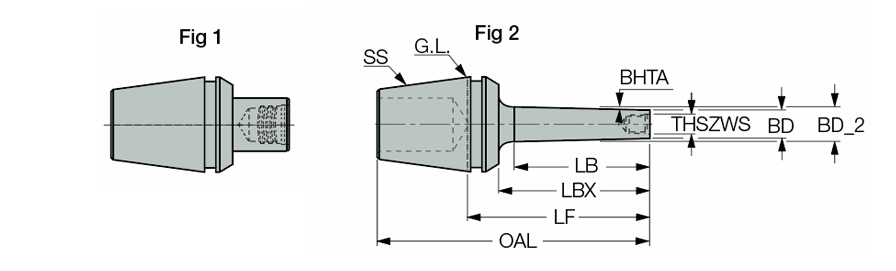

  Designation  GIFUT5SS THSZWS BHTA BD BD_2 LB LBX LF OAL Fig. CSP  GICATGIREMgiic
  MM S-A-H004-ER16-T08    0ER16T08-11.60--4.011.6031.50110.033105828 0
  MM S-A-H013-ER16-T08    0ER16T08-11.60--14.020.6040.50110.023105646 0
  MM S-A-H004-ER20-T08    0ER20T08-11.60--4.012.6035.50210.043105831 0
  MM S-A-H013-ER20-T08    0ER20T08-11.60--13.021.6044.50210.073105649 0
  MM S-A-H004-ER25-T08    0ER25T08-11.60--4.013.1038.00210.113106243 0
  MM S-A-H10.5-ER25-T08    0ER25T08-11.60--10.519.6044.50210.063106247 0
Do not apply lubricant to the threaded connection.
For adaptation click on "More Info".
When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32
