F45WG : Wedge lock 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed.(-)45° Face Mills Carrying Octagonal ONHU/MU 0806... Inserts with 16 Cutting Edges(+)

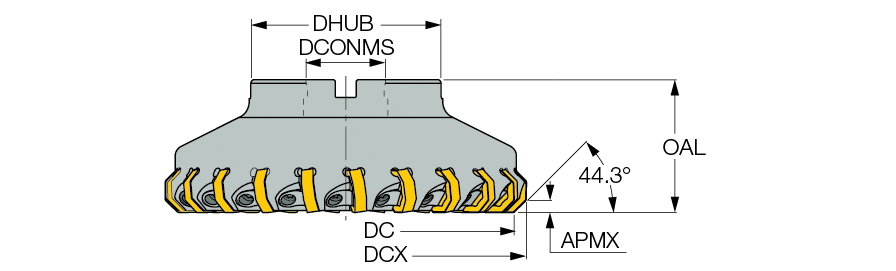

Representative Image

Designation	DC	DCX	CICT	APMX	OAL	DHUB	DCONMS	Arbor	HAND		KAPR	MIID	CCMS	CSP	RMPX°	ZEFF	GICAT	GIREM
F45WG D080-10-27-FX-R08	80.00	92.00	10	5.50	50.00	60.00	27.00	B	R~	1.11	44.3~	ONHU 080608-TN	FDA02G2700H$07~	0~	0.0~	10~	3103868	For internal coolant through the holder, use a matching coolant set (should be ordered separately)
F45WG D100-14-32-FX-R08	100.00	112.00	14	5.50	50.00	70.00	32.00	B	R~	1.64	44.3~	ONHU 080608-TN	FDA02G3200H$07~	0~	0.0~	14~	3103869	For internal coolant through the holder, use a matching coolant set (should be ordered separately)
F45WG D125-18-40-FX-R08	125.00	137.00	18	5.50	63.00	82.00	40.00	B	R~	3.00	44.3~	ONHU 080608-TN	FDA02G4000H$07~	0~	0.0~	18~	3103870	For internal coolant through the holder, use a matching coolant set (should be ordered separately)
F45WG D160-22-40-FX-R08	160.00	172.00	22	5.50	63.00	92.00	40.00	C	R~	4.58	44.3~	ONHU 080608-TN	SPK01G4000H$07~	0~	0.0~	22~	3103871
F45WG D200-12-60-FX-R08	200.00	212.00	12	5.50	63.00	0.00	60.00	C	R~	7.72	44.3~	ONHU 080608-TN	SPK03G6000H$07~	0~	0.0~	12~	3181085
F45WG D200-28-60-FX-R08	200.00	212.00	28	5.50	63.00	150.00	60.00	C	R~	7.57	44.3~	ONHU 080608-TN	SPK03G6000H$07~	0~	0.0~	28~	3103872
F45WG D250-36-60-FX-R08	250.00	262.00	36	5.50	63.00	150.00	60.00	C	R~	10.38	44.3~	ONHU 080608-TN	SPK03G6000H$07~	0~	0.0~	36~	3103873

Note: Recommended wedge clamping torque: 8.5-9.0 Nxm
