ADMT 1505PDR-HS : HELIMILL inserts with a serrated cutting edge for chip splitting, for roughing applications. Use for long overhang and extended flute cutters with reduced chatter.(-)Inserts with a Chip Splitting Serrated Cutting Edge for Roughing(+)

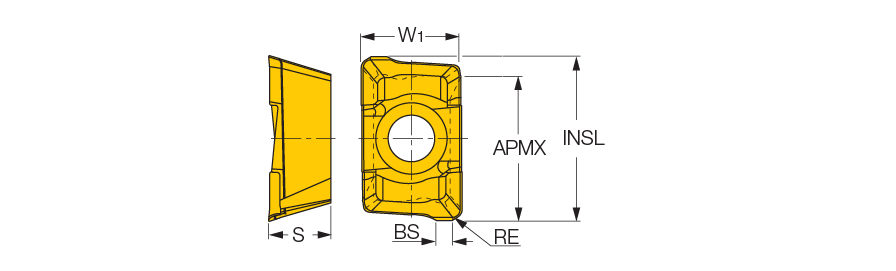

Representative Image

Designation		GIFUT5	W1	INSL	APMX	S	RE	BS	HAND	CEDC	fz (min)	fz (max)	SC	AN	CBMD	CNC	COATP	D1	GRDMFG	IFS	L	LE	NIS	SSC	WEP	ApplMat	StaSteel	CastIron	SupTit	CutEdMat	Coating	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
ADMT 1505PDR-HS		0	9.60	15.85	12.00	5.92	0.80	2.00	R~	2~	0.10	0.20	A~	15.0~	HS~	2~	~	~	IC250 ~	3~	15.85~	14.00~	1~	15~	0~	Steel~	Stainless Steel~	Cast Iron~	Superalloys and titanium~	Carbide~	TiAlN ~	5690088		4	IC328 IC928 IC250 IC950
