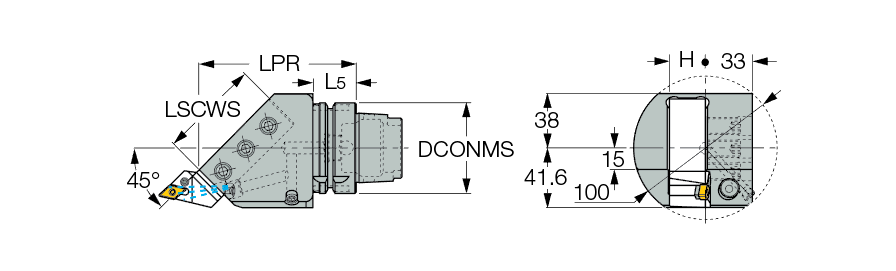

HSK A63WH-ASHR/L-45 : Square shank tool adapters with HSK-T exchangeable shanks for 45° mounting on turn-mill machines.(-)Square Shank Tool Adapters with HSK-T Exchangeable Shanks for 45° Mounting on Turn-Mill Machines(+)
A left-hand tool in a right-hand adapter are shown

A left-hand tool in a right-hand adapter are shown

 100 BAR (1450 PSI) MAX.
Related holders for : SDJCR 2525M-11
  Designation  GIFUT5SFMT DCONMS H LPR LSCWS L5 OAL HAND CSP  CDI  GICATGIREMgiic
  HSK A63WH ASHL 25 45      0Multi-Tasking~63.0025.0110.0070.0030.00142.00~L0~14505042 Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB 0
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
Complies with ICTM standard (ISO 12164-3)
For shank dimensions, click on "More Info"
