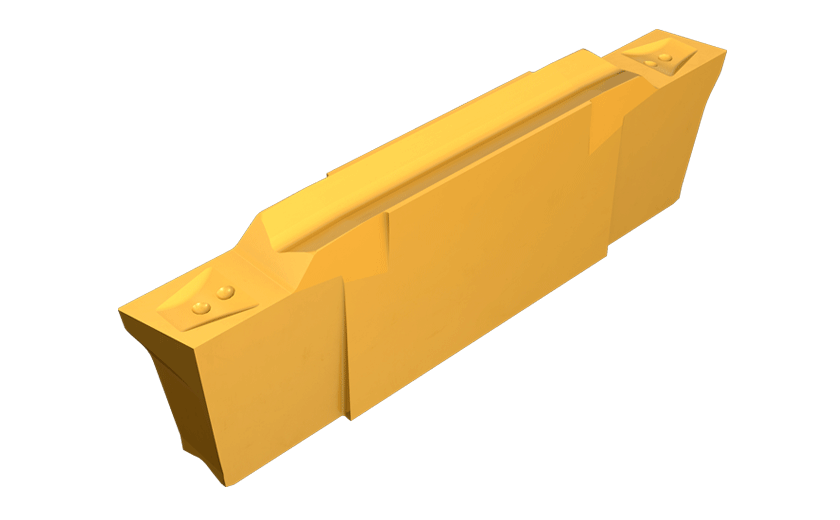

DGR-WP : Parallel wiper design for improved flatness and surface finish. For best results, apply cutting oil. An improved alternative for HSS blades. Low cutting forces. Used at low-to-medium feeds.(-)Double-Sided Parting Inserts with a Wiper Design for High Flatness and Surface Finish(+)

Related inserts for : DGFHL 26B-2D50R

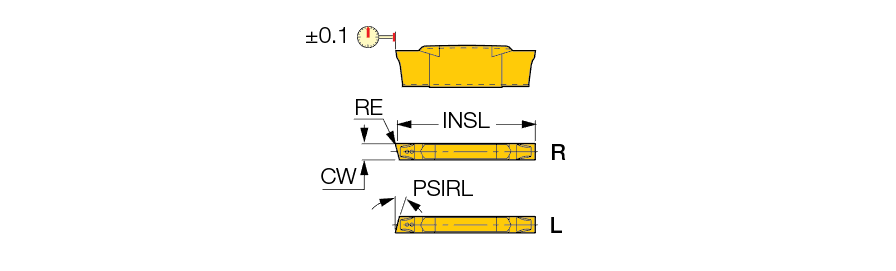

Designation	CW	RE	CDX	INSL	PSIRL	PSIRR	HAND	CBMD	fg (min)	fg (max)	CEDC	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	SupTit	CutEdMat	Coating	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
DGR 1900WP-12D	1.90	0.05	6.00	19.70	-~	12.0	R~	~	0.04	0.10	2~	L~	-~	~	0~	-~	-~	IC1030~	7~	-~	-~	1~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6002931	2	IC328 IC1030
DGR 1900WP-5D	1.90	0.05	6.00	19.70	-~	5.0	R~	~	0.04	0.10	2~	L~	-~	~	0~	-~	-~	IC328 ~	7~	-~	-~	1~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiCN ~	6094429	1	IC328
DGR 2400WP-12D	2.39	0.05	6.00	20.40	-~	12.0	R~	~	0.04	0.10	2~	L~	-~	~	0~	-~	-~	IC1030~	7~	-~	-~	1~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6002933	2	IC328 IC1030
DGR 2400WP-5D	2.39	0.05	6.00	20.40	-~	5.0	R~	~	0.04	0.12	2~	L~	-~	~	0~	-~	-~	IC328 ~	7~	-~	-~	1~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiCN ~	6091929	1	IC328
