MM EFS : FINISHRED, combination of roughing and finishing interchangeable solid carbide endmill heads. Part of the MULTI-MASTER system.(-)Combination of Interchangeable Solid Carbide Endmill Heads for Roughing and Finishing(+)

Related solid tools for : MM CAB T08T08-25/1.0-C

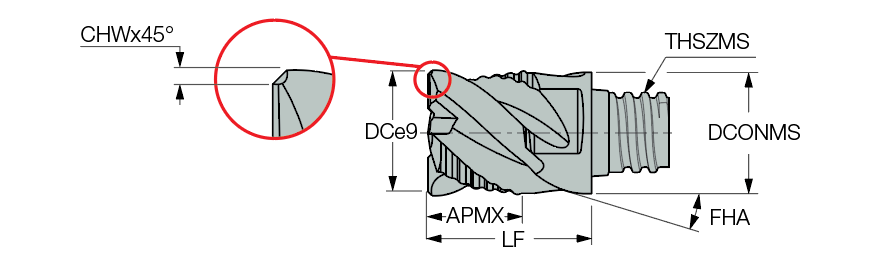

Designation		GIFUT5	DC	NOF	APMX	THSZMS	DCONMS	LF	LU	FHA	fz (min)	fz (max)	RMPX°	MINI	Ch	CHW	L group	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	KCH	OAL	RE	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic	Grade Click on Grade No. for Cutting Speed
MM EFS120B09-4T08		0	12.00	4	9.00	T08	11.70	16.50	~	45.0	0.04	0.10	5.0~	All~	0.40~	0.40	Short~	12.00~	SAI01C0080$$$$~	~	0~	IC908 ~	R~	90.0~	45.0	24.45~	~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5622174		1	IC908

For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
