HP E90AT-19 : 90° endmills carrying HP AD.. 1906.. inserts with 18 mm long and helical cutting edges.(-)90° Endmills Carrying HP AD.. 1906.. Inserts(+)

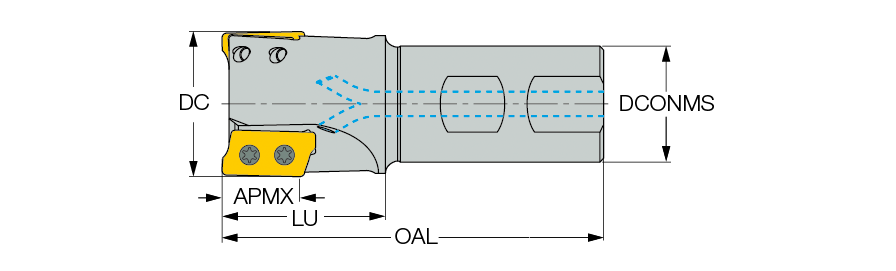

Representative Image

Designation		GIFUT5	DC	CICT	APMX	OAL	LU	DCONMS	RMPX°	RPMX	Shank		L	HAND	KAPR	NOF	CCMS	CSP	DCX	ZEFF	GICAT	GIREM	giic
HP E90AT-D25-2-W25-19		0	25.00	2	18.70	100.00	40.0	25.00	14.0	27995	W	0.30	19.00~	R~	90.0~	2~	ZYL10G2500h$06~	1~	~	2~	3103813		0
HP E90AT-D32-3-W32-19		0	32.00	3	18.40	105.00	40.0	32.00	7.0	18330	W	0.52	19.00~	R~	90.0~	3~	ZYL10G3200h$06~	1~	~	3~	3103804		0

First loosely attach the inner clamping screw, then the outer one. In the same order tighten them both.
For adaptation, click on "More Info"
