HSK A-WH-ASHN-45 : Square shank tool adapters with HSK exchangeable shanks for 45° mounting on turn-mill machines (right-or-left hand tools can be used).(-)Square Shank Tool Adapters with HSK Exchangeable Shanks for 45° Mounting on Turn-Mill Machines(+)

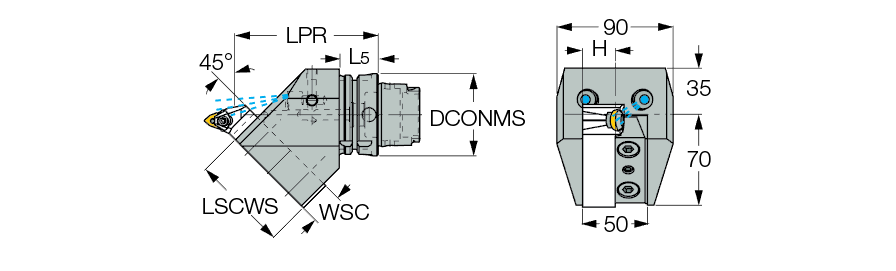

Right-hand shown

Right-hand shown

 100 BAR (1450 PSI) MAX.
Related holders for : PDJNR 2525M-15
  Designation  GIFUT5DCONMS H WSC LPR LSCWS L5 OAL HAND CSP  SFMT CDI  GICATGIREMgiic
  HSK A63WH ASHN 25 45      063.0025.025.0110.0072.0030.00142.00~N~1~Multi-Task-TM~14505046 Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB 0
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
For using left-hand toolholder, the position of the clamping spacer must be changed
Complies with ICTM standard (ISO 12164-3)
For shank dimensions, click on "More Info"
