ADKW (PCD) : A single corner R.H. PCD tipped milling insert, used for machining aluminum with excellent surface finish results. ID 5 for aluminum with up to 12% silicon and ID8 for higher silicon contents.(-)Single Corner R.H. PCD Tipped Inserts for Milling Aluminum(+)

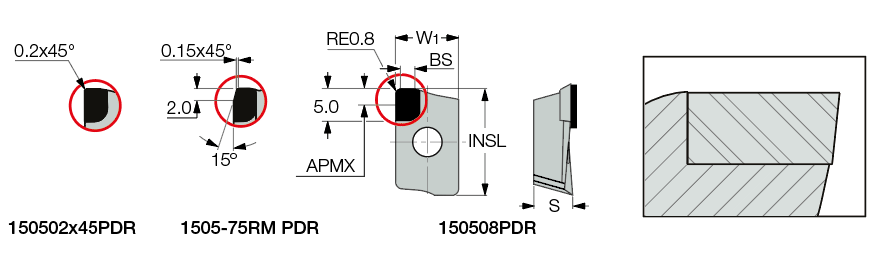

Representative Image

Designation	W1	INSL	S	APMX	BS	RE	CEDC	HAND	fz (min)	fz (max)	SC	AN	CBMD	CNC	COATP	D1	GRDMFG	IFS	L	LE	NIS	SSC	WEP	NFMetals	CutEdMat	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
ADKW 1505-75RM PDR	9.60	16.18	5.83	4.50	2.00	0.00~	1~	~	0.10	0.25	A~	15.0~	-~	2~	~	~	ID5 ~	3~	16.18~	2.00~	1~	15~	0~	Non Ferrous Metals~	PCD~	5695994	1	ID5
ADKW 150502X45 PDR	9.60	16.18	5.83	4.50	2.00	0.00~	1~	~	0.10	0.25	A~	15.0~	-~	2~	~	~	ID5 ~	3~	16.18~	2.00~	1~	15~	0~	Non Ferrous Metals~	PCD~	5695991	1	ID5
ADKW 150508 PDR	9.60	16.18	5.83	4.50	1.52	0.80~	1~	~	0.10	0.25	A~	15.0~	-~	2~	~	~	ID5 ~	3~	16.18~	2.00~	1~	15~	0~	Non Ferrous Metals~	PCD~	5605185	2	ID8 ID5

The inserts are supplied with spare screws.
For D.O.C and cutting speed data, see More Info
