ISCAR Cutting Tools - Metal Working Tools - Milling - Plunging & Recessing

Customized Items ×

Choose an item to customize and generate a quotation

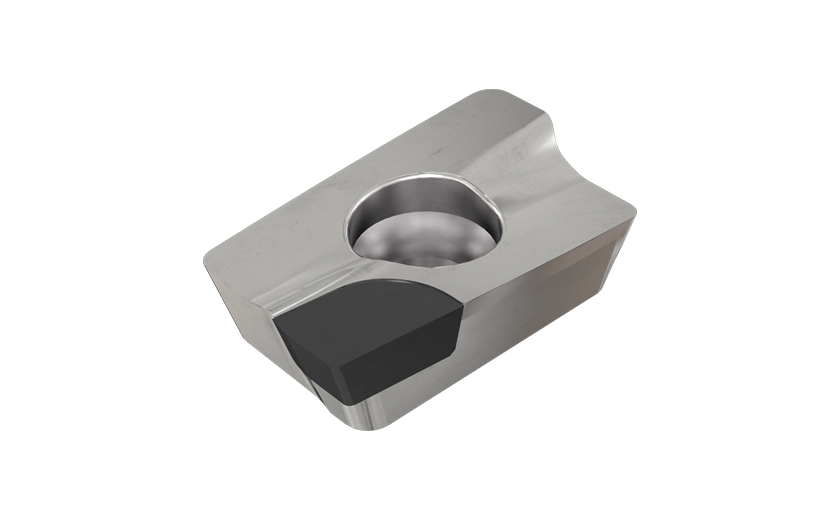

APKW 100304 PDR (PCD) : A single R.H. PCD tipped insert, used for milling aluminum leaving excellent surface finish. Use ID5 for aluminum with up to 12% silicon.(-)Single R.H. PCD Tipped Insert for Milling Aluminum(+)

Related inserts for : HM90 E90A-D22-3-W25-C

Designation		GIFUT5	W1	INSL	APMX	S	RE	BS	CEDC	HAND	DC	SC	AN	CBMD	CNC	COATP	D1	GRDMFG	IFS	L	LE	NIS	SSC	WEP	NFMetals	CutEdMat	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
APKW 100304 PDR		0	6.76	11.47	2.00	3.50	0.40	1.52	1~	~	20.00~	A~	11.0~	-~	2~	~	~	ID5 ~	3~	11.20~	2.00~	1~	10~	0~	Non Ferrous Metals~	PCD~	5605187	Important: use only on tools with diameters of 20 mm and larger	2	ID8 ID5

For DOC and cutting speed recommendations, Click on "More Info".
Use ID5 for aluminum alloys with <12% silicon.
The inserts are supplied with spare screws.
Important: use only on tools with diameters of 20 mm and larger.
