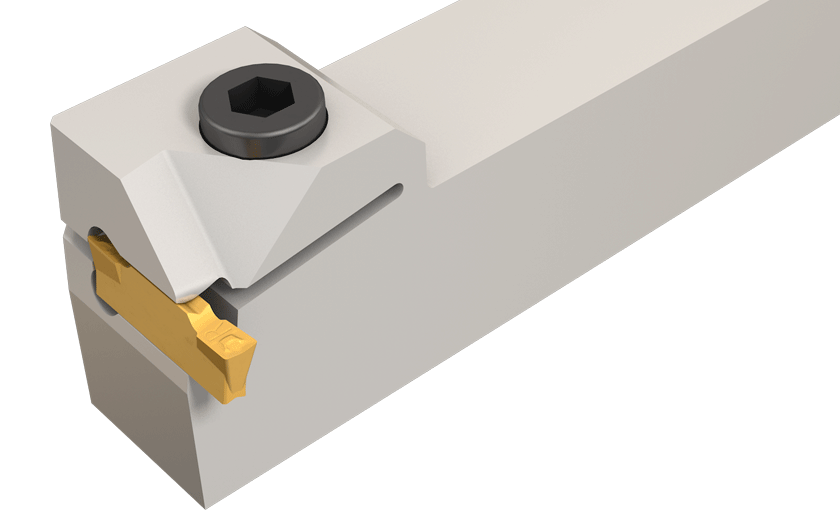

HFHPR/L-M : Perpendicular toolholders for shallow face grooving Dmin. 20 mm.(-)Perpendicular Toolholders for Shallow Face Grooving(+)

Right-hand shown

Designation	CWN	CWX	CDX	WF	H	B	OAL	DAXN	DAXX	OAH	HAND	HF	APMX	CSP	Tool typ	GICAT	GIREM
HFHPL 20M	3.00	6.00	5.00	25.30	20.0	20.0	130.00	20.0	2000.0	29.0	L~	20.0	6.00~	~	SQUARE~	2500260
HFHPL 25M	3.00	6.00	5.00	30.30	25.0	25.0	150.00	20.0	2000.0	34.0	L~	25.0	6.00~	~	SQUARE~	2500262
HFHPR 20M	3.00	6.00	5.00	25.30	20.0	20.0	130.00	20.0	2000.0	29.0	R~	20.0	6.00~	~	SQUARE~	2500259	DGN & GRIP 4, 5, 6 mm inserts can be used only with right-hand toolholders.
HFHPR 25M	3.00	6.00	5.00	30.30	25.0	25.0	150.00	20.0	2000.0	34.0	R~	25.0	6.00~	~	SQUARE~	2500261	DGN & GRIP 4, 5, 6 mm inserts can be used only with right-hand toolholders.

For insert clamping instructions, click on "More Info"
