PICCO-620 (Groove Along Shaft) : PICCO inserts for grooving along shaft Dmin 6 mm.(-)Inserts for Grooving Along a Shaft Dmin 6 mm(+)

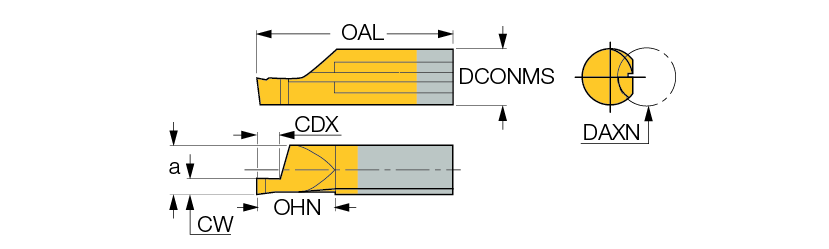

Representative Image

Right-hand shown

Representative Image

Right-hand shown

Designation	DAXN	CW	CDX	DCONMS	OHN	OAL	a	ffg (min)	ffg (max)	MINI	APMX	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
PICCO R 620.1006-20	6.0	1.00	2.00	6.00	20.0	35.00	5.20	0.01	0.04	All~	1.00~	IC1008~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6403913	1	IC1008
PICCO R 620.1506-20	6.0	1.50	3.00	6.00	20.0	35.00	5.20	0.01	0.05	All~	1.50~	IC1008~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6403914	1	IC1008
PICCO R 620.2006-20	6.0	2.00	4.00	6.00	20.0	35.00	5.20	0.02	0.06	All~	2.00~	IC1008~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6403915	1	IC1008
PICCO R 620.2506-20	6.0	2.50	5.00	6.00	20.0	35.00	5.20	0.02	0.06	All~	2.50~	IC1008~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6403916	1	IC1008
PICCO R 620.3006-20	6.0	3.00	6.00	6.00	20.0	35.00	5.20	0.02	0.06	All~	3.00~	IC1008~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6403917	1	IC1008

Only right-hand inserts are available as standard, left-hand inserts on request
All carbide inserts are with sharp corners
