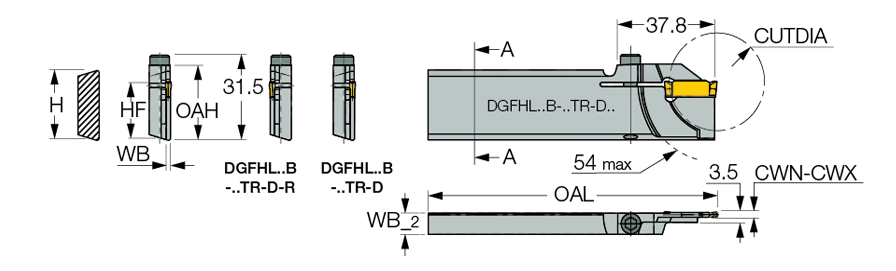

DGFHL-26B-TR-D : Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts. For Traub and Index machines.(-)Reinforced Type Blades with Screw Clamping for TRAUB and Index Machines(+)


  Designation  GIFUT5H  CWN  CWX  WB WB_2 OAL OAH HF CUTDIA  HAND APMX GICATGIREMgiic
  DGFHL 26B-1.5TR-D20      026.01.001.501.207.9110.0027.921.420.0R1.50~2392091 Do not use DG.. 1.4 on this tool! 0
  DGFHL 26B-2TR-D36    026.01.90 2.501.607.9110.0027.921.436.0R2.50~2392081 0
  DGFHL 26B-2TR-D36R    026.01.90 2.501.607.9110.0027.921.436.0L2.50~2399644 0
  DGFHL 26B-3TR-D36    026.03.00 3.182.407.9110.0027.921.436.0R3.18~2394483 0
  DGFHL 26B-3TR-D36R    026.03.00 3.182.407.9110.0027.921.436.0L3.18~2392101 0
Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user
DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on "More Info"
