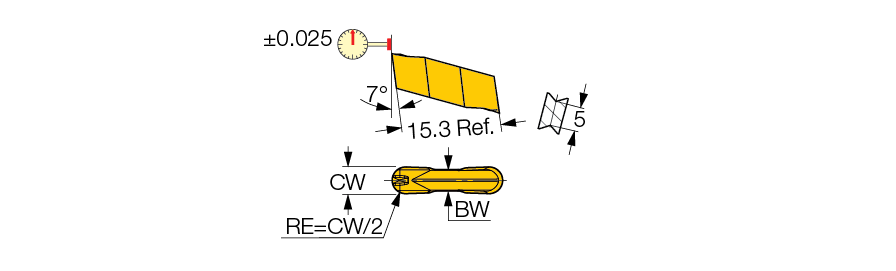

GIP (full radius) : Precision-ground inserts for grooving and recessing. Double-ended, P-type chipformer.(-)Precision Double-Ended Full Radius Inserts for Grooving(+)

Representative Image

Designation	CW	RE	CWTOL	RETOL	CDX	BW	DAXN	fg (min)	fg (max)	L	CBMD	CEDC	SC	AN	COATP	CSP	DMIN	GRDMFG	HAND	IFS	INSL	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
GIP 3.00-1.50	3.00	1.50	0.020	0.050	12.30	2.40	160.0~	0.08	0.15	15.30~	~	2~	L~	7.0~	~	0~	-~	IC20 ~	N~	7~	15.30~	-~	-~	0~		Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN "SUMO TEC" ~	6403058	2	IC20 IC804
GIP 3.18-1.59	3.18	1.59	0.020	0.050	12.20	2.40	160.0~	0.08	0.16	15.30~	~	2~	L~	7.0~	~	0~	-~	IC20 ~	N~	7~	15.30~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	6405239	4	IC830 IC8250 IC808 IC20
GIP 3.98-1.99	3.98	1.99	0.020	0.050	11.80	3.20	160.0~	0.10	0.20	15.30~	~	2~	L~	7.0~	~	0~	-~	IC20 ~	N~	7~	15.30~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiCN+Al2O3+TiN ~	6405243	2	IC8250 IC20
GIP 4.78-2.39	4.78	2.39	0.020	0.050	11.40	4.80	160.0~	0.12	0.22	15.30~	~	2~	L~	7.0~	~	0~	-~	IC20 ~	N~	7~	15.30~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiCN+Al2O3+TiN ~	6405256	2	IC8250 IC20
GIP 5.00-2.50	5.00	2.50	0.020	0.050	11.30	4.00	160.0~	0.13	0.23	15.30~	~	2~	L~	7.0~	~	0~	-~	IC20 ~	N~	7~	15.30~	-~	-~	0~		Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	Uncoated ~	6400958	1	IC20
