HTP-LN10 : TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. 8 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.(-)Side Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges(+)

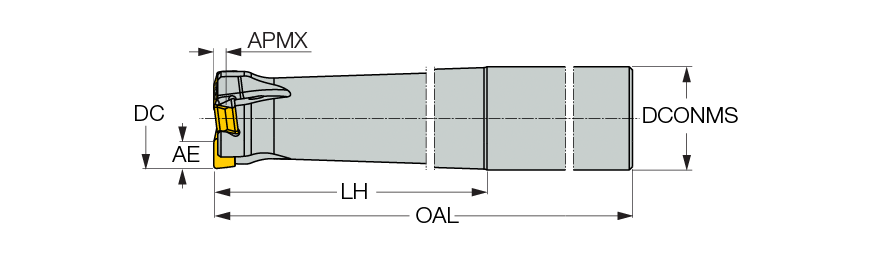

Designation	DC	AE	APMX	CICT	LH	OAL	DCONMS	Shank		HAND	MIID	CCMS	NOF	KAPR	CSP	DCX	DHUB	LU	RMPX°	ZEFF	GICAT
HTP D025-2-L200-C25-LN10	25.00	7.0	3.00	2	120.0	200.00	25.00	C	0.64	R~	HTP LNAR 1006 FR-P	ZYL01G2500h$06~	2~	90.0~	1~	~	~	120.00~	~	2~	3105016
HTP D032-3-L190-C25-LN10	32.00	8.0	3.00	3	50.0	190.00	25.00	C	0.68	R~	HTP LNAR 1006 FR-P	ZYL01G2500h$06~	3~	90.0~	1~	~	~	50.00~	~	3~	3105462
HTP D032-3-L210-C32-LN10	32.00	8.0	3.00	3	120.0	210.00	32.00	C	1.09	R~	HTP LNAR 1006 FR-P	ZYL01G3200h$06~	3~	90.0~	1~	~	~	120.00~	~	3~	3105017
HTP D032-3-L210-W32-LN10	32.00	8.0	3.00	3	120.0	210.00	32.00	W	1.09	R~	HTP LNAR 1006 FR-P	ZYL10G3200h$06~	3~	90.0~	1~	~	~	120.00~	~	3~	3105463
HTP D040-4-L250-C32-LN10	40.00	8.0	3.00	4	50.0	250.00	32.00	C	1.49	R~	HTP LNAR 1006 FR-P	ZYL01G3200h$06~	4~	90.0~	1~	~	~	50.00~	~	4~	3105120

For adaptation, click on "More Info".
