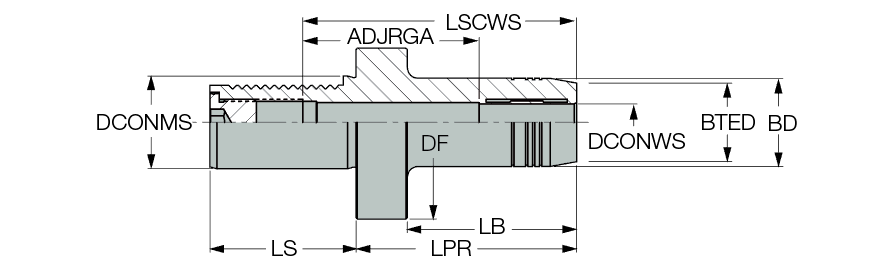

DIN69880-HYDRO : Hydraulic chucks with DIN69880 VDI shanks. for Semi-Finish and finish applications(-)Hydraulic Chucks with VDI Shanks,for Semi-Finish and Finish Applications(+)

Designation	DCONMS	BTED	BD	DF	DCONWS	LS	LPR	LB	ADJRGA	LSCWS	OAL		CSP	GICAT
DIN69880 30 HYDRO 20X89	30.00	38.00	42.00	68.00	20.00	55.00	95.00	73.0	37.00	85.0	150.00~	1.24	1~	4559268
DIN69880 30 HYDRO 25X100	30.00	46.00	50.00	68.00	25.00	55.00	100.00	84.0	31.00	85.0	155.00~	1.20	1~	4559269
DIN69880 40 HYDRO 20X95	40.00	38.00	42.00	83.00	20.00	63.00	95.00	73.0	82.00	130.0	158.00~	1.20	1~	4559271
DIN69880 40 HYDRO 25X95	40.00	46.00	50.00	83.00	25.00	63.00	95.00	73.0	76.00	130.0	158.00~	2.14	1~	4559272
DIN69880 40 HYDRO 32X95	40.00	56.00	60.00	83.00	32.00	63.00	95.00	73.0	32.00	90.0	158.00~	2.00	1~	4559273

Chucking forces will be reduced by 25% if reduction sleeves are used
Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately)
