T290 LNMT/LNHT 0502 : SUMOMILL Tangential inserts with 2 cutting edges.(-)Tangential Inserts with 2 Cutting Edges(+)

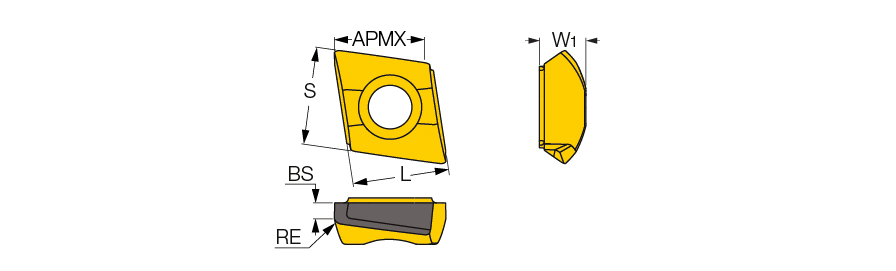

Representative Image

Designation	W1	L	APMX	S	BS	RE	CEDC	HAND	fz (min)	fz (max)	SC	AN	CBMD	CNC	COATP	D1	GRDMFG	IFS	INSL	LE	NIS	SSC	Utility	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
T290 LNHT 050202TR	2.70	5.75	5.00	5.85	1.20	0.20	2~	R~	0.03	0.07	L~	0.0~	~	2~	~	~	IC808 ~	3~	~	~	2~	05~	~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5607272	2	IC830 IC808
T290 LNHT 050204TR	2.70	5.75	5.00	5.85	1.00	0.40	2~	R~	0.03	0.07	L~	0.0~	~	2~	~	~	IC830 ~	3~	~	~	2~	05~	~	0~	Steel~	Stainless Steel~			Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5606396	1	IC830
T290 LNHT 050208TR	2.70	5.75	5.00	5.85	1.00	0.80	2~	R~	0.03	0.07	L~	0.0~	~	2~	~	~	IC830 ~	3~	~	~	2~	05~	~	0~	Steel~	Stainless Steel~			Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5606786	1	IC830
T290 LNHT 050210TR	2.70	5.75	5.00	5.85	1.00	1.00	2~	R~	0.03	0.07	L~	0.0~	~	2~	~	~	IC830 ~	3~	~	~	2~	05~	~	0~	Steel~	Stainless Steel~			Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5606787	1	IC830
T290 LNMT 050204TR	2.70	5.75	5.00	5.85	1.00	0.40	2~	R~	0.04	0.08	L~	0.0~	~	2~	~	~	IC330 ~	3~	~	~	2~	05~	~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrN+TiN ~	5606677	5	IC330 IC830 IC808 IC810 IC5400

LNMT-utility inserts, LNHT-precision inserts.

Milling
Main Application
