ADKW (CBN) : Single corner R.H. inserts with an IB85 PCBN brazed tip insert, for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys.(-)Single Corner R.H. Inserts with an IB85 PCBN Brazed Tip for Machining Hard Materials(+)

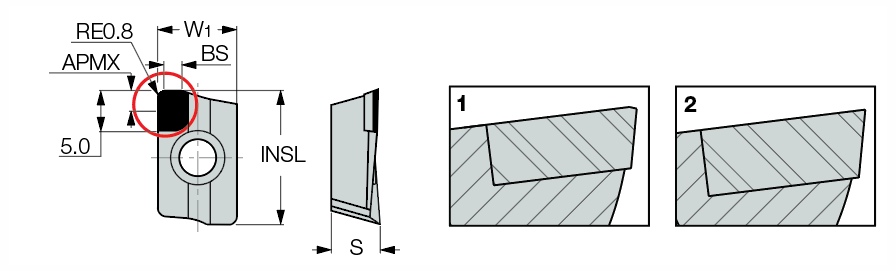

Representative Image

Designation		GIFUT5	W1	INSL	S	BS	APMX	Fig.	fz (min)	fz (max)	RE	CEDC	HAND	SC	AN	CBMD	CNC	COATP	D1	GRDMFG	IFS	L	LE	NIS	SSC	WEP	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic	Grade Click on Grade No. for Cutting Speed
ADKW 1505 PDER		0	9.60	16.18	5.83	1.45	4.50	2	0.10	0.25	0.80~	1~	R~	A~	15.0~	-~	2~	~	~	IB85 ~	3~	16.18~	2.00~	1~	15~	0~	Cast Iron~	Hard Materials~	Superalloys and titanium~	PCBN~	Uncoated ~	5605935		1	IB85
ADKW 1505 PDTR		0	9.60	16.18	5.83	1.45	4.50	1	0.10	0.25	0.80~	1~	R~	A~	15.0~	-~	2~	~	~	IB85 ~	3~	16.18~	2.00~	1~	15~	0~	Cast Iron~	Hard Materials~	Superalloys and titanium~	PCBN~	Uncoated ~	5605934		1	IB85

Inserts are supplied with spare screws.
For D.O.C and cutting speed data, see More Info
