FF EWX-M : HELIDO UPFEED endmills with FLEXFIT threaded adaptation, forfast feed, carrying double-sided Inserts with 6 cutting edges.(-)Fast Feed Endmills with FLEXFIT Threaded Connection Carrying Double-Sided Inserts with 6 Cutting Edges(+)

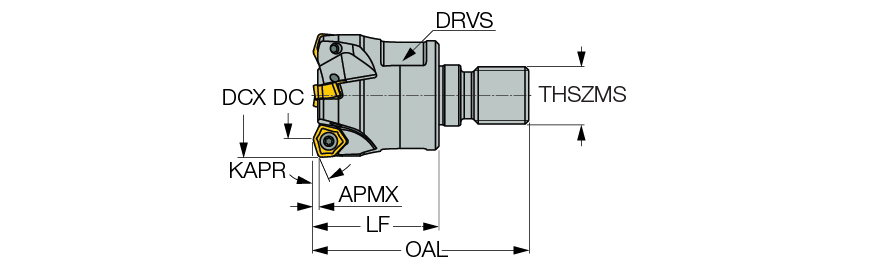

Designation	Ord	DCX	DC	AE	APMX	CICT	LF	OAL	THSZMS	RMPX°	MDN	MDX	DRVS		KAPR	MIID		TQ_3		IC	HAND	Rg	Insert	e	Pocket	CNSC	CXSC	ISYC	ISCTMP	ClssID	GTC	NOF	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	APMX_2	CSP	CUBPMS	CZCMS	DC_2	DCONMS	FF/RN/P	IIC	ISCTMP_2	LF_2	LPR_2	LTA_2	MIID_2	SPI	TCDCONMS	UST	ZEFF	GICAT
FF EWX D20-3-M10-04	10~	20.00	12.60	3.7~	0.80	3	25.00	45.00	M10	4.8	32.60	39.00	15.0	Y~	17.0	H600 WXCU 040310HP	0.9~	29	0.05	6.25~	R~	1.90~	H600 WXCU 04~	~	H600 WXCU 04~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	3~	0~	3~	S~	SAI~	02~	SAI02C0100$$$$~	~	1~	C~	0100~	~	-~	FF~	IS$$290064641938035~	~	-~	~	-~	~	~	$$$$~	C~	3~	3105625
FF EWX D25-4-M12-04	10~	25.00	17.60	3.7~	0.80	4	30.00	52.00	M12	3.3	42.60	49.00	19.0	Y~	17.0	H600 WXCU 040310HP	0.9~	33	0.09	6.25~	R~	1.90~	H600 WXCU 04~	~	H600 WXCU 04~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	4~	0~	4~	S~	SAI~	02~	SAI02C0120$$$$~	~	1~	C~	0120~	~	-~	FF~	IS$$290064641938035~	~	-~	~	-~	~	~	$$$$~	C~	4~	3105623
FF EWX D25-3-M12-05	20~	25.00	15.00	5.0~	1.00	3	30.00	52.00	M12	5.0	40.00	49.00	19.0	Y~	17.0	H600 WXCU 05T312T	2.0~	33	0.09	8.33~	R~	2.10~	H600 WXCU 05~	~	H600 WXCU 05~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	3~	0~	3~	S~	SAI~	02~	SAI02C0120$$$$~	~	1~	C~	0120~	~	-~	FF~	IS$$501494698483240~	~	-~	~	-~	~	~	$$$$~	C~	3~	3105256
FF EWX D32-4-M16-05	20~	32.00	22.00	5.0~	1.00	4	35.00	60.00	M16	4.0	54.00	63.00	25.0	Y~	17.0	H600 WXCU 05T312T	2.0~	40	0.17	8.33~	R~	2.10~	H600 WXCU 05~	~	H600 WXCU 05~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	4~	0~	4~	S~	SAI~	02~	SAI02C0160$$$$~	~	1~	C~	0160~	~	-~	FF~	IS$$501494698483240~	~	-~	~	-~	~	~	$$$$~	C~	4~	3105525
FF EWX D35-4-M16-05	20~	35.00	25.00	5.0~	1.00	4	35.00	60.00	M16	3.5	60.00	69.00	25.0	Y~	17.0	H600 WXCU 05T312T	2.0~	40	0.19	8.33~	R~	2.10~	H600 WXCU 05~	~	H600 WXCU 05~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	4~	0~	4~	S~	SAI~	02~	SAI02C0160$$$$~	~	1~	C~	0160~	~	-~	FF~	IS$$501494698483240~	~	-~	~	-~	~	~	$$$$~	C~	4~	3105533
FF EWX D40-5-M16-05	20~	40.00	30.00	5.0~	1.00	5	40.00	65.00	M16	2.8	70.00	79.00	25.0	Y~	17.0	H600 WXCU 05T312T	2.0~	40	0.26	8.33~	R~	2.10~	H600 WXCU 05~	~	H600 WXCU 05~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	5~	0~	5~	S~	SAI~	02~	SAI02C0160$$$$~	~	1~	C~	0160~	~	-~	FF~	IS$$501494698483240~	~	-~	~	-~	~	~	$$$$~	C~	5~	3105535
FF EWX D32-3-M16-07	30~	32.00	19.00	6.5~	1.50	3	35.00	60.00	M16	6.3	51.00	63.00	25.0	Y~	17.0	H600 WXCU 070515HP	4.8~	40	0.16	11.14~	R~	0.00~	H600 WXCU 07~	~	H600 WXCU 07~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	3~	0~	3~	S~	SAI~	02~	SAI02C0160$$$$~	~	1~	C~	0160~	~	-~	FF~	IS$$357151576682367~	~	-~	~	-~	~	~	$$$$~	C~	3~	3106827
FF EWX D40-4-M16-07	30~	40.00	27.00	6.5~	1.50	4	40.00	65.00	M16	4.2	67.00	79.00	25.0	Y~	17.0	H600 WXCU 070515HP	4.8~	40	0.24	11.14~	R~	0.00~	H600 WXCU 07~	~	H600 WXCU 07~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	4~	0~	4~	S~	SAI~	02~	SAI02C0160$$$$~	~	1~	C~	0160~	~	-~	FF~	IS$$357151576682367~	~	-~	~	-~	~	~	$$$$~	C~	4~	3107061

For machining recommendations, radius for programming and adaptation click on "More Info"
To generate a straight surface without cusps, the width of cut must not exceed DC
