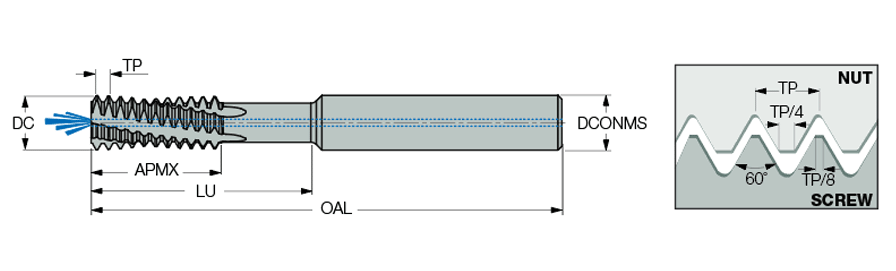

MTECQ-UN : Solid carbide endmills with internal coolant holes and a reduced diameter neck. Used for deep internal, large pitch UN profile threading (up to 3D), on medium and large thread diameters.(-)Solid Carbide Endmills with Internal Coolant Holes and a Reduced Diameter Neck, for Deep Internal UN Profile Threading(+)

Designation	TPI	TDZ	DCONMS	DC	NOF	APMX	LU	OAL	Shank	CSP	THFT	TP	TTP	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
MTECQ 1010D30 20UN	20.0	>=12	10.00	10.00	4	17.80	30.5	73.00	C	1~	UN60~	~	INT~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5606841	1	IC908
MTECQ 1616F43 20UN	20.0	>=18	16.00	16.00	6	25.40	43.2	105.00	C	1~	UN60~	~	INT~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5606843	1	IC908
MTECQ 1616E42 16UN	16.0	>=19	16.00	16.00	5	25.40	42.9	105.00	C	1~	UN60~	~	INT~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5606846	1	IC908
MTECQ 1212D42 12UN	12.0	>=16	12.00	12.00	4	25.40	42.3	84.00	C	1~	UN60~	~	INT~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5606849	1	IC908
