MM EFF : Interchangeable solid carbide FEEDMILL heads with 4 or 6 flute, for milling at very high feed and small D.O.C.(-)4, 6 Flute Solid Carbide Heads for Milling at Very Fast Feeds and Small D.O.C.(+)

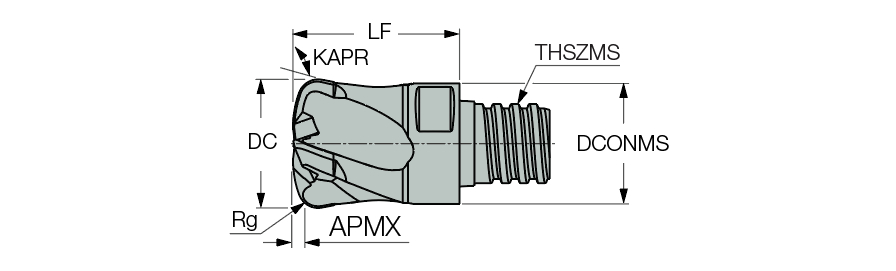

Representative Image

Related solid tools for : MM S-D-L170-C16-T06-W

Designation	DC	NOF	APMX	THSZMS	DCONMS	LF	RMPX°	KAPR	Rg	CSP	fz (min)	fz (max)	OAL	RE	DCX	MINI	CCMS	COATP	GRDMFG	HAND	Utility	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
MM EFF100T4R2.01-4T06	10.00	4	0.50	T06	9.50	13.00	5.0	97.0	2.01	0	0.16	0.57	19.65~	2.01~	10.00~	All~	SAI01C0060$$$$~	~	IC903 ~	R~	U~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5606816	1	IC903
MM EFF100S2R1.0-6T06	10.00	6	0.45	T06	9.50	13.00	5.0	97.0	1.00	0	0.16	0.57	19.65~	1.00~	10.00~	All~	SAI01C0060$$$$~	~	IC903 ~	R~	U~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3398652	1	IC903
MM EFF100T2R1.0-6T06H	10.00	6	0.45	T06	9.50	10.00	3.0	97.0	1.00	1	0.16	0.47	16.65~	1.00~	0.00~	All~	SAI01C0060$$$$~	~	IC903 ~	R~	U~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5668259	1	IC903

For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection
