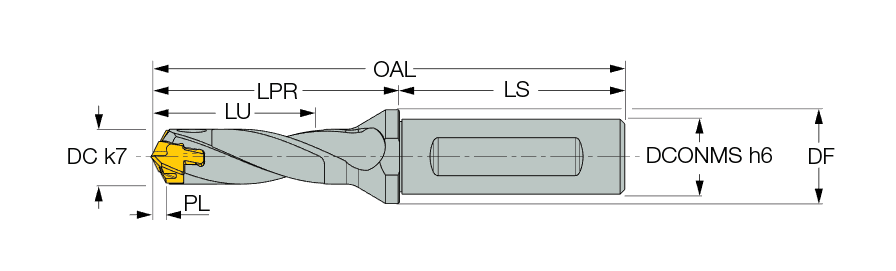

DCN A-3D : SUMOCHAM 3xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.(-)Drill Body with Exchangeable Heads, Internal Coolant Holes and One Flat Shank, Drilling Depth 3xD(+)

Designation	DCN	DCX	DC	DCONMS	DF	LU	LPR	PL	LS	OAL	SSC	ZEFF	CCMS	MIID	CSP	HAND	IFS	NOF	GICAT
DCN 060-018-12A-3D	6.00	6.40	6.00~	12.00	16.00	18.96	32.0	0.960	45.0	77.00	6.0	2~	ZYL11G1200h$06~	ICP 060	1~	R~	0~	2~	3203266
DCN 065-020-12A-3D	6.50	6.90	6.50~	12.00	16.00	20.68	33.8	1.180	45.0	78.80	6.5	2~	ZYL11G1200h$06~	ICP 065	1~	R~	0~	2~	3202891
DCN 070-021-12A-3D	7.00	7.40	7.00~	12.00	16.00	22.01	35.6	1.010	45.0	80.60	7.0	2~	ZYL11G1200h$06~	ICP 070	1~	R~	0~	2~	3202893
DCN 075-023-12A-3D	7.50	7.90	7.50~	12.00	16.00	23.60	37.1	1.100	45.0	82.10	7.0	2~	ZYL11G1200h$06~	ICP 075	1~	R~	0~	2~	3202895
DCN 080-024-12A-3D	8.00	8.40	8.00~	12.00	16.00	25.20	39.4	1.200	45.0	84.40	8.0	2~	ZYL11G1200h$06~	ICP 080	1~	R~	0~	2~	3202287
DCN 085-025-12A-3D	8.50	8.90	8.50~	12.00	16.00	26.79	40.9	1.290	45.0	85.90	8.0	2~	ZYL11G1200h$06~	ICP 085	1~	R~	0~	2~	3202288
DCN 090-027-12A-3D	9.00	9.40	9.00~	12.00	16.00	28.35	42.8	1.350	45.0	87.80	9.0	2~	ZYL11G1200h$06~	ICP 090	1~	R~	0~	2~	3202414
DCN 095-029-12A-3D	9.50	9.90	9.50~	12.00	16.00	29.94	44.3	1.440	45.0	89.30	9.0	2~	ZYL11G1200h$06~	ICP 095	1~	R~	0~	2~	3202415
DCN 100-030-16A-3D	10.00	10.40	10.00~	16.00	20.00	31.50	46.2	1.500	48.0	94.20	10.0	2~	ZYL11G1600h$06~	ICP 100	1~	R~	0~	2~	3260080
DCN 105-032-16A-3D	10.50	10.90	10.50~	16.00	20.00	33.09	47.7	1.590	48.0	95.70	10.0	2~	ZYL11G1600h$06~	ICP 105	1~	R~	0~	2~	3202417
DCN 110-033-16A-3D	11.00	11.40	11.00~	16.00	20.00	34.67	49.6	1.670	48.0	97.60	11.0	2~	ZYL11G1600h$06~	ICP 110	1~	R~	0~	2~	3202419
DCN 115-035-16A-3D	11.50	11.90	11.50~	16.00	20.00	36.26	51.1	1.760	48.0	99.10	11.0	2~	ZYL11G1600h$06~	ICP 115	1~	R~	0~	2~	3202421
DCN 120-036-16A-3D	12.00	12.40	12.00~	16.00	20.00	37.82	53.0	1.820	48.0	101.00	12.0	2~	ZYL11G1600h$06~	ICP 120	1~	R~	0~	2~	3260081
DCN 125-037-16A-3D	12.50	12.90	12.50~	16.00	20.00	39.41	54.5	1.910	48.0	102.50	12.0	2~	ZYL11G1600h$06~	ICP 125	1~	R~	0~	2~	3202283
DCN 130-039-16A-3D	13.00	13.40	13.00~	16.00	20.00	40.96	56.6	1.960	48.0	104.60	13.0	2~	ZYL11G1600h$06~	ICP 130	1~	R~	0~	2~	3202423
DCN 135-041-16A-3D	13.50	13.90	13.50~	16.00	20.00	42.55	58.1	2.050	48.0	106.10	13.0	2~	ZYL11G1600h$06~	ICP 135	1~	R~	0~	2~	3202425
DCN 140-042-16A-3D	14.00	14.40	14.00~	16.00	20.00	44.12	62.1	2.120	48.0	110.10	14.0	2~	ZYL11G1600h$06~	ICP 140	1~	R~	0~	2~	3202427
DCN 145-044-16A-3D	14.50	14.90	14.50~	16.00	20.00	45.71	63.6	2.210	48.0	111.60	14.0	2~	ZYL11G1600h$06~	ICP 145	1~	R~	0~	2~	3202429
DCN 150-045-20A-3D	15.00	15.90	15.00~	20.00	25.00	47.27	68.7	2.270	50.0	118.70	15.0	2~	ZYL11G2000h$06~	ICP 150	1~	R~	0~	2~	3202431
DCN 160-048-20A-3D	16.00	16.90	16.00~	20.00	25.00	50.42	73.3	2.420	50.0	123.30	16.0	2~	ZYL11G2000h$06~	ICP 160	1~	R~	0~	2~	3202300
DCN 170-051-20A-3D	17.00	17.90	17.00~	20.00	25.00	53.59	77.9	2.590	50.0	127.90	17.0	2~	ZYL11G2000h$06~	ICP 170	1~	R~	0~	2~	3202463
DCN 180-054-25A-3D	18.00	18.90	18.00~	25.00	32.00	56.73	82.5	2.730	56.0	138.50	18.0	2~	ZYL11G2500h$06~	ICP 180	1~	R~	0~	2~	3260082
DCN 190-057-25A-3D	19.00	19.90	19.00~	25.00	32.00	59.88	87.0	2.880	56.0	143.00	19.0	2~	ZYL11G2500h$06~	ICP 190	1~	R~	0~	2~	3260083
DCN 200-060-25A-3D	20.00	20.90	20.00~	25.00	32.00	63.02	91.6	3.020	56.0	147.60	20.0	2~	ZYL11G2500h$06~	ICP 200	1~	R~	0~	2~	3260084
DCN 210-063-25A-3D	21.00	21.90	21.00~	25.00	32.00	66.18	96.2	3.180	56.0	152.20	21.0	2~	ZYL11G2500h$06~	ICP 210	1~	R~	0~	2~	3260085
DCN 220-066-25A-3D	22.00	22.90	22.00~	25.00	32.00	69.32	100.8	3.320	56.0	156.80	22.0	2~	ZYL11G2500h$06~	ICP 220	1~	R~	0~	2~	3260086
DCN 230-069-32A-3D	23.00	23.90	23.00~	32.00	42.00	72.46	105.4	3.460	60.0	165.40	23.0	2~	ZYL11G3200h$06~	ICP 230	1~	R~	0~	2~	3260087
DCN 240-072-32A-3D	24.00	24.90	24.00~	32.00	42.00	75.62	110.0	3.620	60.0	170.00	24.0	2~	ZYL11G3200h$06~	ICP 240	1~	R~	0~	2~	3260088
DCN 250-075-32A-3D	25.00	25.90	25.00~	32.00	42.00	78.80	114.5	3.800	60.0	174.50	25.0	2~	ZYL11G3200h$06~	ICP 250	1~	R~	0~	2~	3202462
DCN 260-078-32A-3D	26.00	26.90	26.00~	32.00	42.00	81.95	119.0	3.950	60.0	179.00	26.0	2~	ZYL11G3200h$06~	ICP 260	1~	R~	0~	2~	3203109
DCN 270-081-32A-3D	27.00	27.90	27.00~	32.00	42.00	85.10	123.7	4.100	60.0	191.70	27.0	2~	ZYL11G3200h$06~	ICP 270	1~	R~	0~	2~	3203522
DCN 270-081-40A-3D	27.00	27.90	27.00~	40.00	50.00	85.10	123.7	4.100	68.0	183.70	27.0	2~	ZYL11G4000h$06~	ICP 270	1~	R~	0~	2~	3260089
DCN 280-084-32A-3D	28.00	28.90	28.00~	32.00	42.00	88.25	128.2	4.250	60.0	196.20	28.0	2~	ZYL11G3200h$06~	ICP 280	1~	R~	0~	2~	3203526
DCN 280-084-40A-3D	28.00	28.90	28.00~	40.00	50.00	88.25	128.2	4.250	68.0	188.20	28.0	2~	ZYL11G4000h$06~	ICP 280	1~	R~	0~	2~	3260090
DCN 290-087-32A-3D	29.00	29.90	29.00~	32.00	42.00	91.43	132.8	4.430	60.0	200.80	29.0	2~	ZYL11G3200h$06~	ICP 290	1~	R~	0~	2~	3203530
DCN 290-087-40A-3D	29.00	29.90	29.00~	40.00	50.00	91.43	132.8	4.430	68.0	192.80	29.0	2~	ZYL11G4000h$06~	ICP 290	1~	R~	0~	2~	3260091
DCN 300-090-32A-3D	30.00	30.90	30.00~	32.00	42.00	94.59	137.4	4.590	60.0	205.40	30.0	2~	ZYL11G3200h$06~	ICP 300	1~	R~	0~	2~	3203534
DCN 300-090-40A-3D	30.00	30.90	30.00~	40.00	50.00	94.59	137.4	4.590	68.0	197.40	30.0	2~	ZYL11G4000h$06~	ICP 300	1~	R~	0~	2~	3260092
DCN 310-093-32A-3D	31.00	31.90	31.00~	32.00	42.00	97.76	142.0	4.760	60.0	210.00	31.0	2~	ZYL11G3200h$06~	ICP 310	1~	R~	0~	2~	3203538
DCN 320-096-32A-3D	32.00	32.90	32.00~	32.00	42.00	100.86	146.5	4.860	60.0	214.50	32.0	2~	ZYL11G3200h$06~	ICP 320	1~	R~	0~	2~	3203542
DCN 320-096-40A-3D	32.00	32.90	32.00~	40.00	50.00	100.86	146.5	4.860	68.0	206.50	32.0	2~	ZYL11G4000h$06~	ICP 320	1~	R~	0~	2~	3260094

Do not mount smaller drilling heads other than the specified range of the drill body
