DCN R-12D : SUMOCHAM 12xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.(-)Drill Body with Exchangeable Heads, Internal Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD(+)


 COOLANT THROUGH TOOL
Related tools for : SC 32 SEAL 12

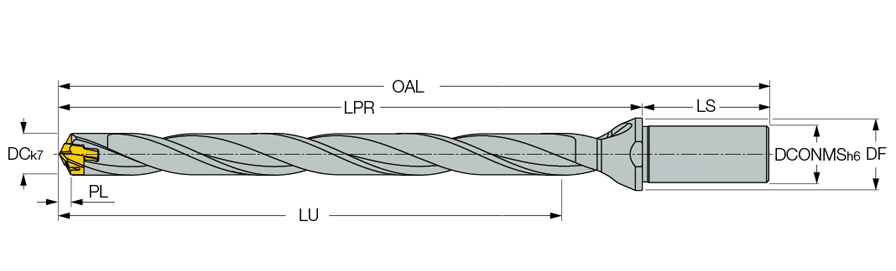

  Designation  GIFUT5DCN  DCX  DCONMS DF LU LPR PL LS OAL SSC  ZEFF CSP  MINI CCMS MIID  DC HAND NOF  GICATGIREMgiic
  DCN 080-096-12R-12D    08.008.4012.0016.0097.50111.41.20045.0156.408.02~1~All~ZYL01G1200h$06~ICP 0808.00~R~2~3202842 0
  DCN 085-102-12R-12D    08.508.9012.0016.00103.60117.41.29045.0162.408.02~1~All~ZYL01G1200h$06~ICP 0858.50~R~2~3316086 0
  DCN 090-108-12R-12D    09.009.4012.0016.00109.60123.81.35045.0168.809.02~1~All~ZYL01G1200h$06~ICP 0909.00~R~2~3202843 0
  DCN 095-114-12R-12D    09.509.9012.0016.00115.70129.81.44045.0174.809.02~1~All~ZYL01G1200h$06~ICP 0959.50~R~2~3310347 0
Prior to using the 12xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill
The HCP or QCP drilling head may eliminate the need for a pre-hole
Do not mount smaller drilling heads other than the specified range of the drill body
