ISCAR Cutting Tools - Metal Working Tools - Hole Making - Plunging & Recessing

Customized Items ×

Choose an item to customize and generate a quotation

DCNS-3D : Exchangeable head drills without a flange and one flat shank, drilling depth 3xD. Suitable for chamfering holders.

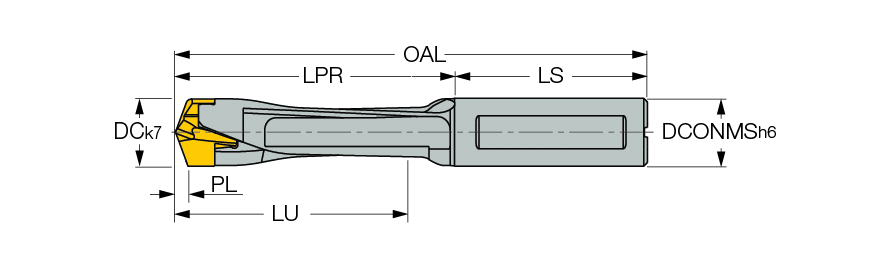

Representative Image

Related tools for : ER25 SPR 9-10

Designation		GIFUT5	DCN	DCX	DCONMS	LU	LPR	PL	LS	OAL	SSC	MIID	ZEFF	CSP	ULDR	SFMT	CCMS	DC	HAND	IFS	NOF	GICAT	GIREM	giic
DCNS 095-029-100B-3D		0	9.50	9.90	10.00	29.94	40.3	1.440	36.0	76.30	9.0	ICP 095	2~	1~	3.0~	Swiss~	ZYL11G1000h$06~	9.50~	R~	0~	2~	3203007		0
DCNS 100-030-100B-3D		0	10.00	10.40	10.00	31.50	45.2	1.500	41.0	86.20	10.0	ICP 100	2~	1~	3.0~	Swiss~	ZYL11G1000h$06~	10.00~	R~	0~	2~	3203008		0

Do not mount smaller drilling heads other than the specified range of the drill body

Hole Making
Main Application
