TGTBU-JHP : Tool blocks for parting and grooving blades for high pressure coolant

Choose blade by prism height dimension

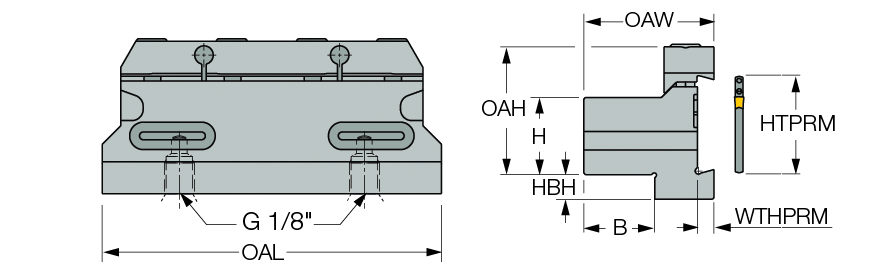

Designation	Ord	H	B	HTPRM	OAW	OAH	HBH	WTHPRM	OAL	S6	CCTMS	S. Std.	Mod	fh	A3	BMC	CP	ISCTMP		BSC	ClssID		CSP	LTA	Parallel	SPI	Tool typ	WTA	GICAT
TGTBU 16-5G-JHP	10~	16.0	16.9	26.0	35.60	29.9	13.1	4.10	86.00	2~	~	SQ~	100~	3.90~	13.00~	S~	140~	~	0.41~	0~	~	N~	~	0.00~	L~	~	SQUARE~	0.00~	2302490
TGTBU 20-5G-JHP	20~	20.0	20.9	26.0	39.60	33.9	9.1	4.10	86.00	1~	~	SQ~	100~	7.90~	13.00~	S~	140~	~	0.61~	0~	~	N~	~	37.00~	L~	~	SQUARE~	-15.50~	2302491
TGTBU 20-6G-JHP	30~	20.0	19.0	32.0	39.20	36.4	15.0	5.30	100.00	1~	~	SQ~	100~	5.10~	13.90~	S~	140~	~	0.69~	0~	~	N~	~	0.00~	L~	~	SQUARE~	0.00~	2302493
TGTBU 25-5G-JHP	40~	25.0	26.1	26.0	44.10	39.0	5.5	4.10	110.00	1~	~	SQ~	100~	13.20~	12.90~	S~	140~	~	0.87~	0~	~	N~	~	49.00~	L~	~	SQUARE~	-19.30~	2302492
TGTBU 25-6G-JHP	50~	25.0	23.0	32.0	43.20	41.4	8.0	5.30	110.00	1~	~	SQ~	100~	9.10~	13.90~	S~	140~	~	0.88~	0~	~	N~	~	49.00~	L~	~	SQUARE~	-14.90~	2302494
TGTBU 32-6G-JHP	60~	32.0	29.0	32.0	49.20	48.4	5.0	5.30	110.00	1~	~	SQ~	100~	15.10~	13.90~	S~	140~	~	1.24~	0~	~	N~	~	55.00~	L~	~	SQUARE~	-20.20~	2302495
