Milling
Main Application

Plunging & Recessing
Sub Application

Customized Items ×
Choose an item to customize and generate a quotation

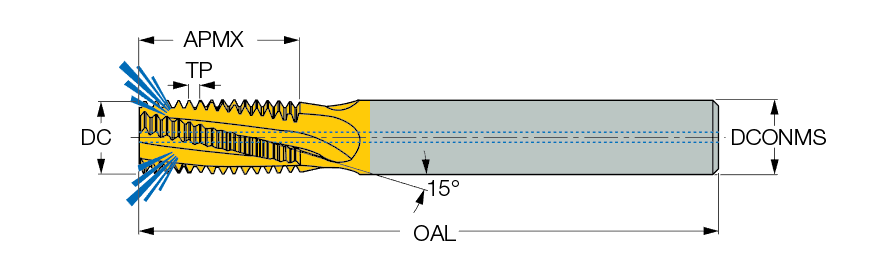

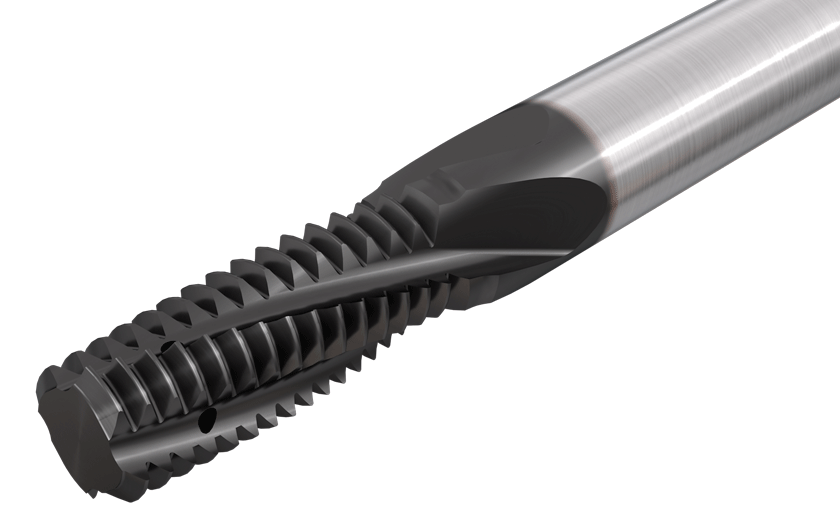

MTECZ-Whitworth : Solid carbide threading endmills with coolant holes located in the flutes, used for internal or external Whitworth thread profile.(-)Solid Carbide Threading Endmills with Coolant Holes Located in the Flutes, for Internal or External Whitworth Thread(+)
Application: General engineering fittings and pipe couplings

Application: General engineering fittings and pipe couplings

 COOLANT THROUGH TOOL
  Designation  GIFUT5Ord TPI  BSW DCONMS DC NOF  APMX OAL Shank  THFT_2 BMC LS CSP  THFT fz
(min)
fz
(max)
TP  TPT TTP ISCTMP ClssID GRDMFG ISYC LTA ZAX ApplMat StaSteelCastIronHardMa SupTit CutEdMatCoating GICATGIREMgiicGrade  Click on Grade No. for Cutting Speed
  MTECZ 10092D24 16W    030~16.01/210.009.20424.6073.00C~H~~Y~1~WH550.03~0.10~~F~BOTH~~0.06~~IC908 ~303-09~33.00~15~Steel~Stainless Steel~Cast Iron~Hard Materials~Superalloys and titanium~Carbide~TiAlN ~5607291 1IC908
  MTECZ 10086D24 12W    045~12.01/210.008.60424.4073.00C~H~~Y~1~WH550.03~0.11~~F~BOTH~~0.06~~IC908 ~303-09~33.00~11~Steel~Stainless Steel~Cast Iron~Hard Materials~Superalloys and titanium~Carbide~TiAlN ~5607293 1IC908
  MTECZ 12109D28 11W    050~11.05/812.0010.90428.9084.00CBSP(G)~H~~Y~1~WH550.03~0.12~~F~BOTH~~0.10~~IC908 ~303-09~39.00~12~Steel~Stainless Steel~Cast Iron~Hard Materials~Superalloys and titanium~Carbide~TiAlN ~5607294 1IC908
With internal coolant hole
