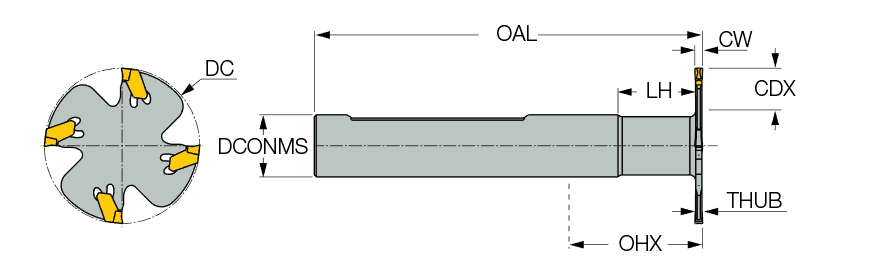

SGSF-W : Grooving and slitting cutters with integral weldon shanks.(-)Grooving and Slitting Cutters with Integral Weldon Shanks(+)

Designation		GIFUT5	CWN	CWX	DC	DCONMS	CDX	NOF	THUB	LH	OHX	OAL	MIID	KAPR	CCMS	APMX	CICT	CSP	HAND	ZEFF	GICAT	GIREM	giic
SGSF 32-1.6-W16		0	1.50	1.79	32.00	16.00	7.00	3	1.32	20.0	49.0	100.00	GSFN 1.6	90.0~	ZYL10G1600h$06~	1.79~	3~	0~	R~	3~	2302436		0
SGSF 32-2-W16		0	1.80	2.69	32.00	16.00	7.00	3	1.62	20.0	49.0	100.00	GSFN 2	90.0~	ZYL10G1600h$06~	2.69~	3~	0~	R~	3~	2302437	Standard GSFN 2.4 mm inserts are not suitable for this tool; for suitable tool, see specific pocket size.	0
SGSF 40-1.6-W16		0	1.50	1.79	40.00	16.00	11.00	4	1.32	34.0	63.0	100.00	GSFN 1.6	90.0~	ZYL10G1600h$06~	1.79~	4~	0~	R~	4~	2302438		0
SGSF 40-2-W16		0	1.80	2.69	40.00	16.00	11.00	4	1.62	34.0	63.0	100.00	GSFN 2	90.0~	ZYL10G1600h$06~	2.69~	4~	0~	R~	4~	2302439	Standard GSFN 2.4 mm inserts are not suitable for this tool; for suitable tool, see specific pocket size.	0
