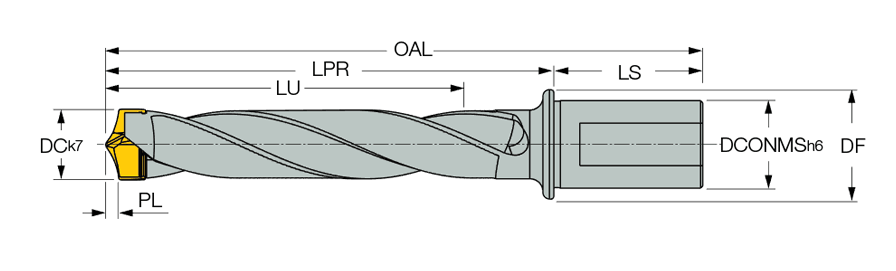

DFN A-5D-IQ : Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 5xD

Designation	DC	DCN	DCX	DCONMS	DF	LU	LPR	PL	LS	OAL	SSC	CCMS	CSP	HAND	NOF	ZEFF	GICAT
DFN 330-165-32A-5D-IQ	33.00~	33.00	33.90	32.00	42.00	165.0	203.0	7.330	60.0	263.00	33.0	ZYL11G3200h$06~	1~	R~	2~	2~	3203369
DFN 340-170-32A-5D-IQ	34.00~	34.00	34.93	32.00	42.00	170.0	209.2	7.620	60.0	269.20	34.0	ZYL11G3200h$06~	1~	R~	2~	2~	3203370
DFN 350-175-32A-5D-IQ	35.00~	35.00	35.90	32.00	42.00	175.0	215.3	7.650	60.0	275.30	35.0	ZYL11G3200h$06~	1~	R~	2~	2~	3203371
DFN 360-180-32A-5D-IQ	36.00~	36.00	36.90	32.00	42.00	180.0	221.5	8.150	60.0	281.50	36.0	ZYL11G3200h$06~	1~	R~	2~	2~	3203372
DFN 370-185-32A-5D-IQ	37.00~	37.00	37.90	32.00	42.00	185.0	227.6	8.040	60.0	287.60	37.0	ZYL11G3200h$06~	1~	R~	2~	2~	3203373
DFN 380-190-32A-5D-IQ	38.00~	38.00	38.90	32.00	42.00	190.0	233.8	8.200	60.0	293.80	38.0	ZYL11G3200h$06~	1~	R~	2~	2~	3203374
DFN 390-195-32A-5D-IQ	39.00~	39.00	40.00	32.00	42.00	195.0	239.9	8.430	60.0	299.90	39.0	ZYL11G3200h$06~	1~	R~	2~	2~	3203375

Do not mount smaller drilling heads other than the specified range of the drill body
