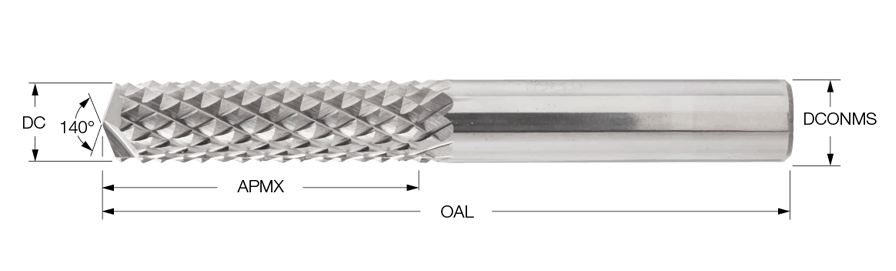

EPND : Solid carbide endmills with special cutting edges also for drill mill operation, for machining of different kind of composite materials. Enables application of high feed and speed due to excellent chip and heat disposal.(-)Solid Carbide Endmills with Special Cutting Edges, also for Drill Mill Applications(+)

Related solid tools for : ER32 SRK 3X60

Designation	DC	DCONMS	APMX	OAL	NOF	Shank	fz- (min)	fz- (max)	Ch	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	RE	RMPX°	ZEFF	NFMetals	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
EPND-C6 016-5C03F55	1.60	3.00	5.00	55.00	6	C	0.0050	0.0100	~	ZYL01F3000h$06~	~	0~	IC02 ~	R~	~	~	~	6~	Non Ferrous Metals~	Carbide~	Uncoated ~	5622871	1	IC02
EPND-C6 024-10C03F55	2.40	3.00	10.00	55.00	6	C	0.0050	0.0100	~	ZYL01F3000h$06~	~	0~	IC02 ~	R~	~	~	~	6~	Non Ferrous Metals~	Carbide~	Uncoated ~	5622872	1	IC02
EPND-C8 03-12C03F55	3.00	3.00	12.00	55.00	8	C	0.0050	0.0120	~	ZYL01F3000h$06~	~	0~	IC02 ~	R~	~	~	~	8~	Non Ferrous Metals~	Carbide~	Uncoated ~	5622873	1	IC02
