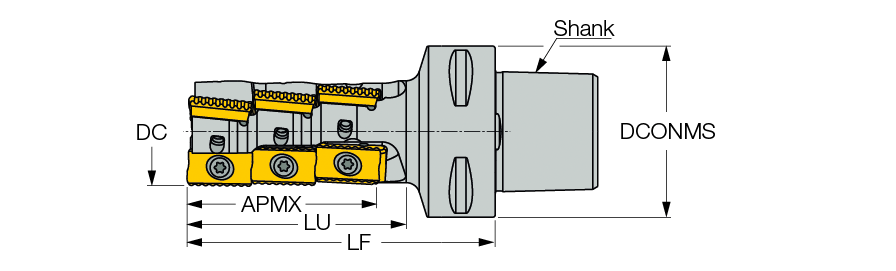

P290 ACK-C#-18 : Extended flute endmills with CAMFIX (ISO 26623-1 standard) shanks carrying 18 mm long edged inserts.(-)Extended Flute Endmills with CAMFIX Shanks Carrying 18 mm Long Edged Inserts(+)

Designation	DC	APMX	NOF	CICT	LU	LF	OAL	RMPX°	DCONMS	Shank	DCP	MIID		L	HAND	KAPR	CCMS	CSP	ZEFF	GICAT	GIREM
P290 ACK D32-3-36-C5-18	32.00	36.00	3	6	64.0	90.00	120.00~	2.0	50.00	CAMFIX	1	P290 ACKT 1806PDR-FW	0.79	18.50~	R~	90.0~	CCS02C0500$$$$~	1~	3~	3107184	Do not use with P290 ACKT...-FWR insert
P290 ACK D40-3-87-C6-18	40.00	87.00	3	15	106.0	134.60	172.60~	1.5	63.00	CAMFIX	1	P290 ACKT 1806PDR-FW	1.66	18.50~	R~	90.0~	CCS02C0630$$$$~	1~	3~	3107185
P290 ACK D63-5-87-C8-18	63.00	87.00	5	25	104.0	140.00	188.00~	0.8	80.00	CAMFIX	1	P290 ACKT 1806PDR-FW	4.00	18.50~	R~	90.0~	CCS02C0800$$$$~	1~	5~	3107186
