CGHN 26-M : Internal grooving and turning blades, for Dmin 70 mm, Tmax 18.7 mm.(-)Internal Grooving and Turning Blades for GHIC...-70 Bars(+)


Related tools for : GIPA 5.00-2.50YZ-D

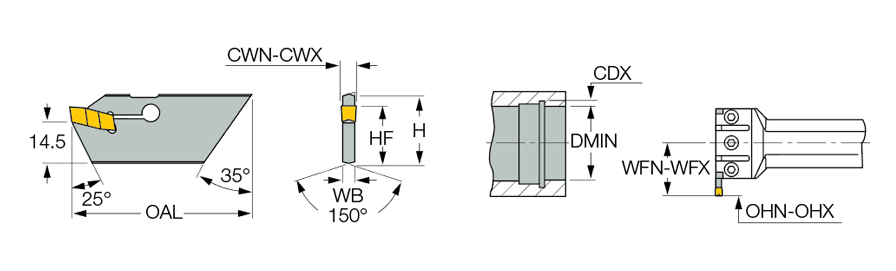

  Designation  GIFUT5CWN  CWX  WB DMIN WFN  OHN  WFX  OHX  HF OAL H HAND APMX CSP  GICATGIREMgiic
  CGHN 26-5M    04.406.404.0070.0040.013.546.520.021.463.0026.0N~6.40~~2800592 0
Grooving depth (CDX) varies in conformance with blade's overhang (WFN-WFX and OHN-OHX) and depends on the bore diameter (D)
For grooving capacity, click "More Info"
CGHN 26...-M can be modified from external double-sided CGHN blades
When TIP inserts are used, the seat needs to be modified to ensure clearance
