MM ER : Interchangeable 4 flute solid carbide corner round milling heads.(-)Interchangeable 4 Flute Solid Carbide Corner Round Milling Heads(+)

Related solid tools for : MM S-A-H004-ER16-T06-H

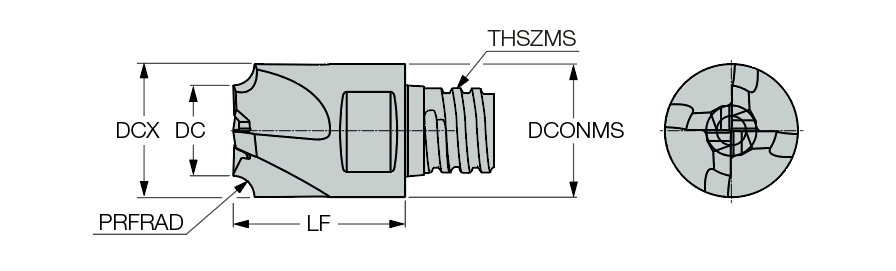

Designation	PRFRAD	Tm	DC	DCX	DCONMS	NOF	LF	THSZMS	L group	OAL	HAND	CSP	APMX	ZEFF	CCMS	COATP	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
MM ER1.6/063-6.8-4T06	1.60	0.5-2.5	6.80	10.00	10.00	4	13.00	T06	~	19.65~	R~	0~	~	4~	SAI01C0060$$$$~	~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5667826	1	IC908
MM ER2.0/078-6.0-4T06	2.00	0.5-2.5	6.00	10.00	10.00	4	13.00	T06	~	19.65~	R~	0~	~	4~	SAI01C0060$$$$~	~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5667827	1	IC908
MM ER2.5/094-5.1-4T06	2.50	0.5-2.5	5.10	10.00	10.00	4	13.00	T06	~	19.65~	R~	0~	~	4~	SAI01C0060$$$$~	~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5667828	1	IC908

For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
