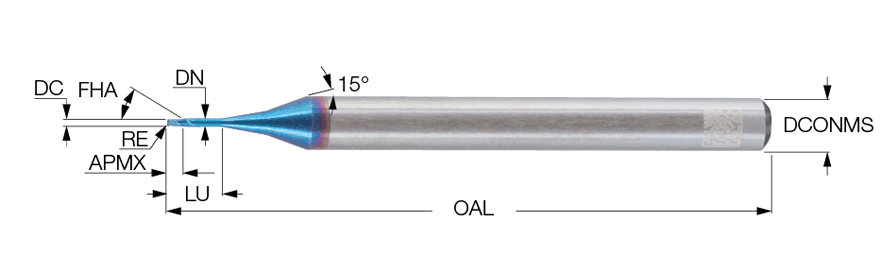

EC-A2-R/H (rib processing) : 2 flute, 30° helix and corner radii solid carbide endmills for rib processing on hard materials up to 65 HRC.(-)2 Flute, 30° Helix and Corner Radii Solid Carbide Endmills for Rib Processing on Hard Materials up to 65 HRC(+)

HARD MATERIALS

Related solid tools for : BT30 SRK 4X50

Designation	DC	DCONMS	APMX	RE	LU	OAL	DN	NOF	FHA	Shank	fz- (min)	fz- (max)	L group	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	RMPX°	ZEFF	ApplMat	HardMa	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
EC-A2 001-0015/003C4H45	0.10	4.00	0.15	-	0.3	45.00	0.09	2	30.0	C	0.0020	0.0025	short~	0.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669073	1	IC702
EC-A2 002-003/005C4H45	0.20	4.00	0.30	-	0.5	45.00	0.17	2	30.0	C	0.0030	0.0030	short~	0.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669075	1	IC702
EC-A2 003-0045/01C4H45	0.30	4.00	0.45	-	1.0	45.00	0.27	2	30.0	C	0.0030	0.0040	short~	0.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669078	1	IC702
EC-A2 003-0045/03C4H45	0.30	4.00	0.45	-	3.0	45.00	0.27	2	30.0	C	0.0030	0.0040	short~	0.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669081	1	IC702
EC-A2 004-006/01C4H45	0.40	4.00	0.60	-	1.0	45.00	0.37	2	30.0	C	0.0030	0.0050	short~	0.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669083	1	IC702
EC-A2 004-006/02C4H45	0.40	4.00	0.60	-	2.0	45.00	0.37	2	30.0	C	0.0030	0.0050	short~	0.40~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669084	1	IC702
EC-A2 005-007/02C4H45	0.50	4.00	0.70	-	2.0	45.00	0.45	2	30.0	C	0.0030	0.0050	short~	0.50~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669085	1	IC702
EC-A2 005-007/1.5C4R05H45	0.50	4.00	0.70	0.05	1.5	45.00	0.45	2	30.0	C	0.0010	0.0020	SHORT~	0.50~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	3.0~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669126	1	IC702
EC-A2 005-007/2.5C4R05H45	0.50	4.00	0.70	0.05	2.5	45.00	0.45	2	30.0	C	0.0010	0.0020	SHORT~	0.50~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	3.0~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669127	1	IC702
EC-A2 006-009/02C4H45	0.60	4.00	0.90	-	2.0	45.00	0.55	2	30.0	C	0.0030	0.0070	short~	0.60~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669088	1	IC702
EC-A2 006-009/3C4R05H45	0.60	4.00	0.90	0.05	3.0	45.00	0.55	2	30.0	C	0.0010	0.0020	SHORT~	0.60~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	3.0~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669129	1	IC702
EC-A2 007-010/4C4R.1H45	0.70	4.00	1.00	0.10	4.0	45.00	0.65	2	30.0	C	0.0010	0.0030	SHORT~	0.70~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	3.0~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669133	1	IC702
EC-A2 008-012/04C4H45	0.80	4.00	1.20	-	4.0	45.00	0.75	2	30.0	C	0.0030	0.0080	short~	0.80~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669089	1	IC702
EC-A2 008-012/06C4H45	0.80	4.00	1.20	-	6.0	45.00	0.75	2	30.0	C	0.0030	0.0090	short~	0.80~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669090	1	IC702
EC-A2 008-012/4C4R.1H45	0.80	4.00	1.20	0.10	4.0	45.00	0.75	2	30.0	C	0.0010	0.0030	SHORT~	0.80~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	3.0~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669135	1	IC702
EC-A2 008-012/6C4R.1H45	0.80	4.00	1.20	0.10	6.0	45.00	0.75	2	30.0	C	0.0010	0.0030	SHORT~	0.80~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	3.0~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669136	1	IC702
EC-A2 010-015/04C4H45	1.00	4.00	1.50	-	4.0	45.00	0.97	2	30.0	C	0.0040	0.0120	short~	1.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669091	1	IC702
EC-A2 010-015/06C4H45	1.00	4.00	1.50	-	6.0	45.00	0.97	2	30.0	C	0.0040	0.0120	short~	1.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669092	1	IC702
EC-A2 010-015/08C4H45	1.00	4.00	1.50	-	8.0	45.00	0.95	2	30.0	C	0.0040	0.0120	short~	1.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669093	1	IC702
EC-A2 010-015/10C4H45	1.00	4.00	1.50	-	10.0	45.00	0.95	2	30.0	C	0.0040	0.0120	short~	1.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669094	1	IC702
EC-A2 010-015/12C4H45	1.00	4.00	1.50	-	12.0	45.00	0.93	2	30.0	C	0.0040	0.0120	short~	1.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669095	1	IC702
EC-A2 010-015/20C4H55	1.00	4.00	1.50	-	20.0	55.00	0.93	2	30.0	C	0.0040	0.0120	short~	1.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669096	1	IC702
EC-A2 012-018/06C4H45	1.20	4.00	1.80	-	6.0	45.00	1.17	2	30.0	C	0.0050	0.0150	short~	1.20~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669097	1	IC702
EC-A2 015-023/06C4H45	1.50	4.00	2.30	-	6.0	45.00	1.47	2	30.0	C	0.0050	0.0150	short~	1.50~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669098	1	IC702
EC-A2 015-023/08C4H45	1.50	4.00	2.30	-	8.0	45.00	1.45	2	30.0	C	0.0050	0.0150	short~	1.50~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669099	1	IC702
EC-A2 015-023/10C4H45	1.50	4.00	2.30	-	10.0	45.00	1.45	2	30.0	C	0.0050	0.0150	short~	1.50~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669100	1	IC702
EC-A2 015-023/12C4H45	1.50	4.00	2.30	-	12.0	45.00	1.41	2	30.0	C	0.0050	0.0150	short~	1.50~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669101	1	IC702
EC-A2 020-030/06C4H45	2.00	4.00	3.00	-	6.0	45.00	1.97	2	30.0	C	0.0100	0.0200	short~	2.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669104	1	IC702
EC-A2 020-030/08C4H45	2.00	4.00	3.00	-	8.0	45.00	1.95	2	30.0	C	0.0100	0.0200	short~	2.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669105	1	IC702
EC-A2 020-030/10C4H45	2.00	4.00	3.00	-	10.0	45.00	1.95	2	30.0	C	0.0100	0.0200	short~	2.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669106	1	IC702
EC-A2 020-030/12C4H45	2.00	4.00	3.00	-	12.0	45.00	1.93	2	30.0	C	0.0100	0.0200	short~	2.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669107	1	IC702
EC-A2 020-030/14C4H50	2.00	4.00	3.00	-	14.0	50.00	1.93	2	30.0	C	0.0100	0.0200	short~	2.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669108	1	IC702
EC-A2 020-030/16C4H50	2.00	4.00	3.00	-	16.0	50.00	1.91	2	30.0	C	0.0100	0.0200	short~	2.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669109	1	IC702
EC-A2 020-030/20C4H55	2.00	4.00	3.00	-	20.0	55.00	1.89	2	30.0	C	0.0100	0.0200	short~	2.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669110	1	IC702
EC-A2 020-030/25C4H60	2.00	4.00	3.00	-	25.0	60.00	1.89	2	30.0	C	0.0100	0.0200	short~	2.00~	ZYL01F4000h$06~	~	0~	IC702 ~	R~	90.0~	~	2~	Steel~	Hard Materials~	Carbide~	AlTiCrSiN ~	5669111	1	IC702
