SM : HELI2000, Extended flute shell mills carrying HM90 ADKT 1505... inserts.(-)Extended Flute Shell Mills Carrying HM90 ADKT 1505... Inserts(+)

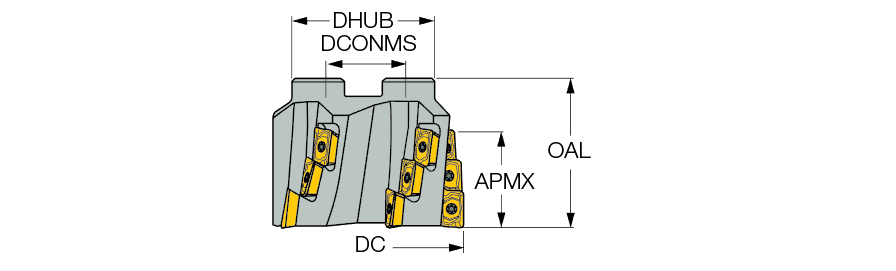

Designation		GIFUT5	DC	APMX	NOF	CICT	OAL	DHUB	DCONMS	Arbor	RMPX°		L	HAND	PD	Insert	Mod	Semi- (Q)	Pocket	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	GTC	Ap Back	KAPR	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	CSP	CUBPMS	CZCMS	IIC	IIC_2	IIC_3	IIC_4	RPMX	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
SM D50-25-M......J/K		0	50.00	25.00	3	6	52.00	47.70	22.00	A	0.9	0.43	15.00~	R~	RF~	~	120~	0~	~	ADKT 1505PDTR	0~	0~	308-04~	GEMLT020010~	71E01A05B627B~	MILSQI_MFDA02~	0.00~	90.0~	0~	6~	S~	FDA~	02~	FDA02G2200H$07~	0~	G~	2200~	IS$$1130240221216590~	IS$$1139853956892540~	IS$$1217073251666820~	IS$$1226686987342770~	~	H7~	M~	3~	3~	3100774	Japanese standard	0
SM D50-25-27-M		0	50.00	25.00	3	6	56.00	47.70	27.00	A	0.9	0.43	15.00~	R~	C~	AD 1505~	120~	1~	AD 1505~	ADKT 1505PDTR	0~	0~	308-04~	GEMLT020010~	71E01A05B627B~	MILSQI_MFDA02~	0.00~	90.0~	0~	6~	S~	FDA~	02~	FDA02G2700H$07~	0~	G~	2700~	IS$$1130240221216590~	IS$$1139853956892540~	IS$$1217073251666820~	IS$$1226686987342770~	~	H7~	M~	3~	3~	3100772		0
SM D 63-38-M.....J/K		0	63.00	38.00	4	12	60.00	55.00	25.40	A	0.7	0.68	15.00~	R~	F~	~	120~	0~	~	ADKT 1505PDTR	0~	0~	308-04~	GEMLT020010~	71E01A05B627B~	MILSQI_MFDA02~	0.00~	90.0~	0~	12~	S~	FDA~	02~	FDA02G2540H$07~	0~	G~	2540~	IS$$1130240221216590~	IS$$1139853956892540~	IS$$1217073251666820~	IS$$1226686987342770~	~	H7~	M~	4~	4~	3100443	Japanese standard	0
SM D63-38-27-M		0	63.00	38.00	4	12	60.00	55.00	27.00	A	0.7	0.67	15.00~	R~	RC~	AD 1505~	120~	1~	AD 1505~	ADKT 1505PDTR	0~	0~	308-04~	GEMLT020010~	71E01A05B627B~	MILSQI_MFDA02~	0.00~	90.0~	0~	12~	S~	FDA~	02~	FDA02G2700H$07~	0~	G~	2700~	IS$$1130240221216590~	IS$$1139853956892540~	IS$$1217073251666820~	IS$$1226686987342770~	~	H7~	M~	4~	4~	3100770		0
SM D100-38-M.....J/K		0	100.00	38.00	6	18	60.00	82.00	38.10	B	0.4	1.78	15.00~	R~	F~	~	120~	0~	~	ADKT 1505PDTR	0~	0~	308-04~	GEMLT020010~	71E01A05B627B~	MILSQI_MFDA02~	0.00~	90.0~	0~	18~	S~	FDA~	02~	FDA02G3810H$07~	0~	G~	3810~	IS$$1130240221216590~	IS$$1139853956892540~	IS$$1217073251666820~	IS$$1226686987342770~	~	H7~	M~	6~	6~	3100788	Japanese standard	0
