GFIS ER-ER : A floating reamer collet chuck that keeps the system completely rigid until it reaches a steady state of reaming. It only starts floating once the reamer penetrates into the bore and the cutting forces are applied.(-)Floating Reamer ER Collet Chuck with ER Shank for High Speed Cutting Reamers(+)

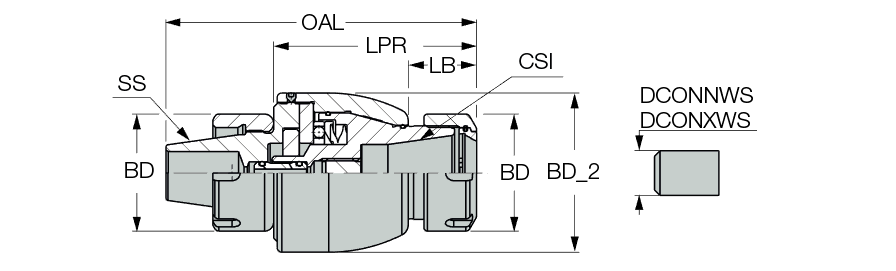

Designation		GIFUT5	CSI	DCONNWS	DCONXWS	LF	OAL	LPR	LB	BD	BD_2	CZCMS	SS	RFl		Mod	CCTMS	BMC	CCTWS	CCFWS	CUBPWS	CCMS	TCDCONWS	CCFMS	CUBPMS	TCDCONMS	GTC	CCWS	ISYC	CZCWS	ISCTMP	BSC	ClssID	LTA	GICAT	GIREM	giic
GFIS ER32X70-ER32		0	ER32	12.00	20.00	87.00~	133.00	87.00	29.50	50.00	68.00	0320~	ER32	0.22	1.69	~	SZD~	S~	SZD~	02~	C~	SZD02C0320$$$$~	$$$$~	02~	C~	$$$$~	ADPRS_MSZD02_WSZD02~	SZD02C0320$$$$~	401-01~	0320~	~	2~	71EEBDADB63BE~	87.00~	4548175		0

Maximum 10K RPM
Angular floating range 1.0°
For Reaming 12-20 mm shank diameter range only
