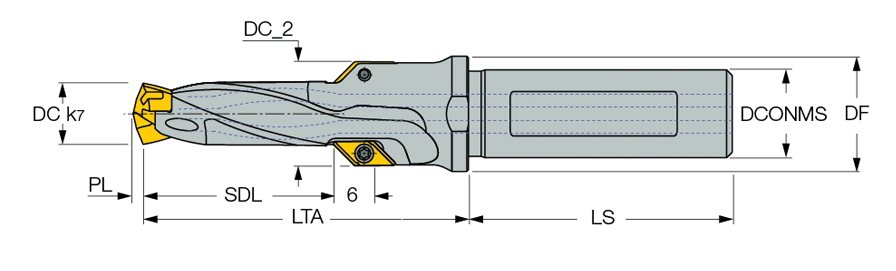

DCNT (M8-M24) : Exchangeable head drills with chamfering inserts mainly for pre-thread holes.

Designation	Dnominal	DC	FTDZ	DCN	DCX	DC_2	SDL	PL	LU	LTA	OAL	DCONMS	DF	LS	SSC	ZEFF	CSP	CICT	HAND	NOF	CCMS	GICAT
DCNT 068-021-12A-M8	6.80	6.80~	M8	6.50	6.90	13.50	21.00	1.240	28.20~	43.80	90.00~	12.00	16.00	45.0	6.5	2~	1~	1~	R~	2~	ZYL11G1200h$06~	3260255
DCNT 085-026-12A-M10	8.50	8.50~	M10	8.50	8.90	15.50	26.00	1.200	33.20~	48.80	95.00~	12.00	17.00	45.0	8.0	2~	1~	1~	R~	2~	ZYL11G1200h$06~	3260256
DCNT 102-030-16A-M12	10.20	10.20~	M12	10.00	10.40	17.00	30.00	1.500	37.50~	52.50	102.00~	16.00	20.00	48.0	10.0	2~	1~	1~	R~	2~	ZYL11G1600h$06~	3260257
DCNT 120-035-16A-M14	12.00	12.00~	M14	12.00	12.40	19.00	35.00	1.800	42.80~	61.00	109.00~	16.00	21.00	48.0	12.0	2~	1~	1~	R~	2~	ZYL11G1600h$06~	3260258
DCNT 140-039-16A-M16	14.00	14.00~	M16	14.00	14.40	21.00	39.00	2.100	47.10~	66.90	117.00~	16.00	23.00	48.0	14.0	2~	1~	1~	R~	2~	ZYL11G1600h$06~	3260259
DCNT 175-042-20A-M20	17.50	17.50~	M20	17.00	17.90	24.00	42.00	2.700	50.70~	69.30	122.00~	20.00	25.00	50.0	17.0	2~	1~	1~	R~	2~	ZYL11G2000h$06~	3260260
DCNT 210-048-25A-M24	21.00	21.00~	M24	21.00	21.90	28.00	48.00	3.200	57.20~	80.00	136.00~	25.00	32.00	56.0	21.0	2~	1~	1~	R~	2~	ZYL11G2500h$06~	3260261

Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions
Do not mount smaller drilling heads other than the specified range of the drill body
