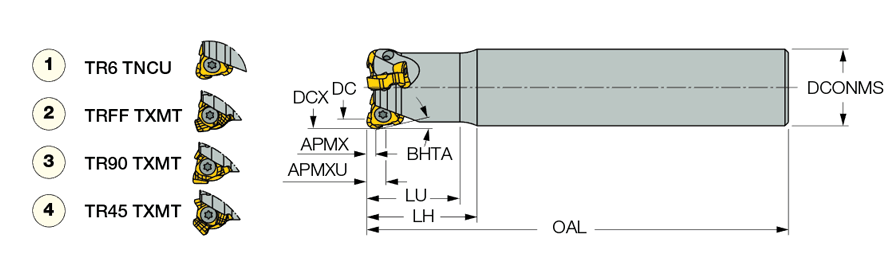

TR6 ER : Multifunction endmills that carry four different insert geometries.(-)Multifunction Endmills That Carry Four Different Insert Geometries(+)

Representative Image

Tool shown with TR6 TNCU inserts

Representative Image

Tool shown with TR6 TNCU inserts

Designation	DCX	DCX_2	DCX_3	DCX_4	DC	DC_2	DC_4	APMX	APMX_2	APMX_3	APMX_4	APMXU	BHTA	CICT	LU	LU_2	LU_3	LU_4	LH	LH_2	LH_3	LH_4	RMPX°_2	OAL	OAL_2	OAL_3	OAL_4	DCONMS	MIID	MIID_2	MIID_3	MIID_4		HAND	IC	CCMS	CSP	ZEFF	GICAT
TR6 ER D16-50-2-C16-07	16.00	16.00	16.00	-	14.00	12.10	-	1.00	0.60	2.50	-	2.00	18.0	2	46.50	46.70	46.80	-	50.0	50.2	50.3	-	1.3	100.00	100.20	100.30	-	16.00	TR6 TNCU 070210	TRFF TXMT 0702	TR90 TXMT 070204	-	0.12	R~	5.30~	ZYL01G1600~	1~	~	3320749
TR6 ER D20-60-4-C20-07	20.00	20.00	20.00	-	18.00	16.10	-	1.00	0.60	2.50	-	2.00	18.0	4	56.50	56.70	56.80	-	60.0	60.2	60.3	-	1.0	120.00	120.20	120.30	-	20.00	TR6 TNCU 070210	TRFF TXMT 0702	TR90 TXMT 070204	-	0.22	R~	5.30~	ZYL01G2000~	1~	~	3320750
TR6 ER D25-70-5-C25-07	25.00	25.00	25.00	-	23.00	21.10	-	1.00	0.60	2.50	-	2.00	18.0	5	65.50	65.70	65.80	-	70.0	70.2	70.3	-	0.7	140.00	140.20	140.30	-	25.00	TR6 TNCU 070210	TRFF TXMT 0702	TR90 TXMT 070204	-	0.42	R~	5.30~	ZYL01G2500~	1~	~	3320751
TR6 ER D32-80-6-C32-07	32.00	32.00	32.00	-	30.00	28.10	-	1.00	0.60	2.50	-	2.00	18.0	6	75.50	75.70	75.80	-	80.0	80.2	80.3	-	0.5	160.00	160.20	160.30	-	32.00	TR6 TNCU 070210	TRFF TXMT 0702	TR90 TXMT 070204	-	0.82	R~	5.30~	ZYL01G3200~	1~	~	3320752
TR6 ER D25-70-3-C25-10	25.00	24.60	25.00	26.80	20.00	19.00	20.60	2.50	0.80	4.00	3.00	4.20	17.0	3	65.00	65.15	64.91	65.12	70.0	70.2	69.9	70.1	1.7	140.00	140.15	139.91	140.12	25.00	TR6 TNCU 100425	TRFF TXMT 1004	TR90 TXMT 100408	TR45 TXMT 1004	0.41	R~	7.30~	ZYL01G2500~	1~	~	3320733
TR6 ER D32-80-4-C32-10	32.00	31.60	32.00	33.80	27.00	26.00	27.60	2.50	0.80	4.00	3.00	4.20	17.0	4	75.00	75.15	74.91	75.12	80.0	80.2	79.9	80.1	1.2	160.00	160.15	159.91	160.12	32.00	TR6 TNCU 100425	TRFF TXMT 1004	TR90 TXMT 100408	TR45 TXMT 1004	0.81	R~	7.30~	ZYL01G3200~	1~	~	3320734

Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on "More Info"
