MM EC-Z4-1.5xD : Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for roughing and finishing operations. High material removal rates.(-)Interchangeable Solid Carbide Endmill Heads with 1.5xD Flute Lengths for Roughing and Finishing(+)

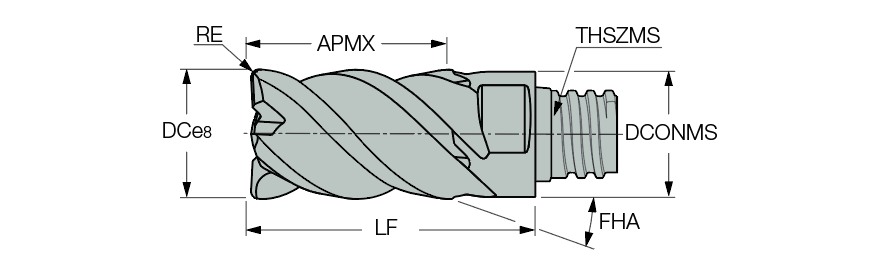

Designation	Ord	DC	NOF	APMX	RE	THSZMS	Ts	LS	DCONMS	LF	FHA	RMPX°	fz (min)	fz (max)	Ft		CSP	Mod	Semi- (Q)	S1	S2	L group	BMC		CCFMS	CCMS	CCTMS	ClssID	CNSC	COATP	CUBPMS	CXSC	CZCMS	GRDMFG	GTC	HAND	ISCTMP	ISCTMP_2	ISYC	LTA	UST	ZEFF	ZEFP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
MM EC080B12R000-4T05	10~	8.00	4	12.00	0.00	T05	T05~	~	7.70	18.00	46.5	5.0~	0.03	0.09	~	N~	0~	~	~	~	~	~	H~	0.01~	04~	SAI04C0050~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0050~	IC608 ~	~	R~	~	~	303-01~	~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrSiN ~	3415477	1	IC608
MM EC080H12R05CF-4T05	10~	8.00	4	12.00	0.50	T05	T05~	7.1~	7.70	18.00	46.5	5.0~	0.03	0.09	~	N~	0~	ML300~	~	1~	~	~	H~	0.01~	04~	SAI04C0050~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0050~	IC908 ~	~	R~	~	~	303-01~	18.00~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3336711	1	IC908
MM EC100B15R000-4T06	20~	10.00	4	15.00	0.00	T06	T06~	~	9.60	22.00	46.5	5.0~	0.03	0.10	~	N~	0~	~	~	~	~	~	H~	0.02~	04~	SAI04C0060~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0060~	IC608 ~	~	R~	~	~	303-01~	~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrSiN ~	3415478	1	IC608
MM EC100H15R05CF-4T06	20~	10.00	4	15.00	0.50	T06	T06~	6.7~	9.60	22.00	46.5	5.0~	0.03	0.10	~	N~	0~	ML300~	~	1~	~	~	H~	0.02~	04~	SAI04C0060~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0060~	IC908 ~	~	R~	~	~	303-01~	~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3336712	1	IC908
MM EC120B18R000-4T08	30~	12.00	4	18.00	0.00	T08	T08~	~	11.70	27.00	46.5	5.0~	0.04	0.11	~	N~	0~	~	~	~	~	~	H~	0.03~	04~	SAI04C0080~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0080~	IC608 ~	~	R~	~	~	303-01~	~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrSiN ~	3415479	1	IC608
MM EC120H18R05CF-4T08	30~	12.00	4	18.00	0.50	T08	T08~	8.0~	11.70	27.00	46.5	5.0~	0.04	0.11	~	N~	0~	ML300~	~	1~	~	~	H~	0.03~	04~	SAI04C0080~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0080~	IC908 ~	~	R~	~	~	303-01~	27.00~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3336713	1	IC908
MM EC160B24R000-4T10	40~	16.00	4	24.00	0.00	T10	T10~	~	15.30	33.50	46.5	5.0~	0.05	0.13	~	N~	0~	~	~	~	~	~	H~	0.07~	04~	SAI04C0100~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0100~	IC608 ~	~	R~	~	~	303-01~	~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrSiN ~	3415481	1	IC608
MM EC160H24R05CF-4T10	40~	16.00	4	24.00	0.50	T10	T10~	11.8~	15.30	33.50	46.5	5.0~	0.05	0.13	~	N~	0~	ML300~	~	1~	~	~	H~	0.07~	04~	SAI04C0100~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0100~	IC908 ~	~	R~	~	~	303-01~	~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3336714	1	IC908
MM EC200B30R000-4T12	50~	20.00	4	30.00	0.00	T12	T12~	~	18.45	41.00	46.5	5.0~	0.05	0.17	~	N~	0~	~	~	~	~	~	H~	0.14~	04~	SAI04C0120~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0120~	IC608 ~	~	R~	~	~	303-01~	~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrSiN ~	3415483	1	IC608
MM EC200H30R05CF-4T12	50~	20.00	4	30.00	0.50	T12	T12~	13.8~	18.45	41.00	46.5	5.0~	0.05	0.17	~	N~	0~	ML300~	~	1~	~	~	H~	0.14~	04~	SAI04C0120~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0120~	IC908 ~	~	R~	~	~	303-01~	41.00~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3336715	1	IC908
MM EC250B37R000-4T15	60~	25.00	4	37.00	0.00	T15	T15~	~	23.90	52.50	46.5	5.0~	0.06	0.17	~	N~	0~	~	~	~	~	~	H~	0.28~	04~	SAI04C0150~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0150~	IC608 ~	~	R~	~	~	303-01~	~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrSiN ~	3415484	1	IC608
MM EC250H37R05CF-4T15	60~	25.00	4	37.00	0.50	T15	T15~	17.6~	23.90	52.50	46.5	5.0~	0.06	0.17	~	N~	0~	ML300~	~	1~	~	~	H~	0.28~	04~	SAI04C0150~	SAI~	71E01A05D27A8~	0~	~	C~	0~	0150~	IC908 ~	~	R~	~	~	303-01~	52.50~	M~	~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3336716	1	IC908

For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection
