FFX4 ED-M : Endmills with FLEXFIT threaded adaptation carrying small double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets milling.(-)Endmills with FLEXFIT Adaptation Carrying Small "Bone Shaped" Inserts with 4 Cutting Edges for Fast Feed Milling(+)

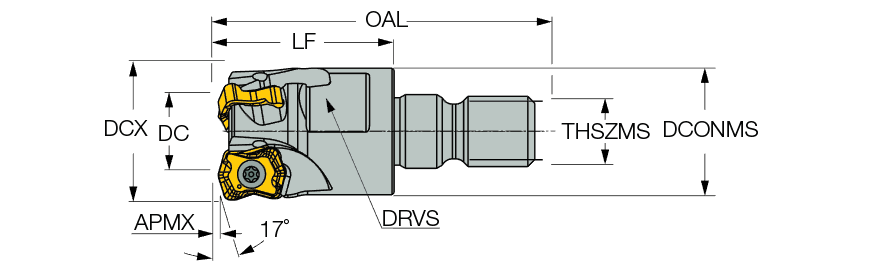

Designation	DCX	DC	CICT	APMX	AE	THSZMS	LF	OAL	DCONMS	RMPX°	MDN	MDX	DRVS	HAND	KAPR	Rg	MIID		TQ_3		Pocket	Ap Back	e	CNSC	CXSC	ISYC	ISCTMP	ClssID	GTC	ZNP	BMC	CCTMS	CCFMS	CCMS	D Inner	CSP	CUBPMS	CZCMS	FF/RN/P	IIC	IIC_2	TCDCONMS	UST	ZADJ	ZEFF	GICAT
FFX4 ED20/.78-3-M10-04	20.00	12.60	3	0.80	3.7	M10	25.00	45.00	18.00	2.7	32.60	39.00	15.0	R~	17.0~	1.80	FFX4 XNMU 040310T	0.9~	29	0.04	FFX4 XNMU 040310~	~	~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	3~	S~	SAI~	02~	SAI02C0080$$$$~	12.60~	1~	C~	0080~	FF~	IS$$379445234309740~	IS$$391803508504776~	$$$$~	C~	0~	3~	3336689
FFX4 ED25/.98-4-M12-04	25.00	17.60	4	0.80	3.7	M12	30.00	52.00	21.00	1.8	42.60	49.00	19.0	R~	17.0~	1.80	FFX4 XNMU 040310T	0.9~	33	0.08	FFX4 XNMU 040310~	0.75~	~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	4~	S~	SAI~	02~	SAI02C0080$$$$~	17.60~	1~	C~	0080~	FF~	IS$$379445234309740~	IS$$391803508504776~	$$$$~	C~	0~	4~	3336690
FFX4 ED32/1.26-5-M16-04	32.00	24.60	5	0.80	3.7	M16	35.00	60.00	29.00	1.2	56.60	63.00	27.0	R~	17.0~	1.80	FFX4 XNMU 040310T	0.9~	40	0.18	FFX4 XNMU 040310~	~	~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	5~	S~	SAI~	02~	SAI02C0080$$$$~	24.60~	1~	C~	0080~	FF~	IS$$379445234309740~	IS$$391803508504776~	$$$$~	C~	0~	5~	3336691
FFX4 ED35/1.38-5-M16-04	35.00	27.60	5	0.80	3.7	M16	35.00	60.00	29.00	1.1	62.60	69.00	25.0	R~	17.0~	1.80	FFX4 XNMU 040310T	0.9~	40	0.20	FFX4 XNMU 040310~	0.50~	~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	5~	S~	SAI~	02~	SAI02C0080$$$$~	27.60~	1~	C~	0080~	FF~	IS$$379445234309740~	IS$$391803508504776~	$$$$~	C~	0~	5~	3336692
FFX4 ED42/1.65-6-M16-04	42.00	34.60	6	0.80	3.7	M16	40.00	65.00	29.00	0.8	76.60	83.00	25.0	R~	17.0~	1.80	FFX4 XNMU 040310T	0.9~	40	0.30	FFX4 XNMU 040310~	~	~	1~	3~	307-01~	GEMLT060100~	71E01A05D27A8~	MILSQI_MSAI02~	6~	S~	SAI~	02~	SAI02C0000$$$$~	34.60~	1~	C~	0000~	FF~	IS$$379445234309740~	IS$$391803508504776~	$$$$~	C~	0~	6~	3369972

For adaptation, click on "More Info"
To generate a straight surface without cusps, the width of cut must not exceedDC
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Applyappropriate tightening torque to eliminate a gap between the mating faces.Estimated torque values are specified in the TQ_3 parameter
