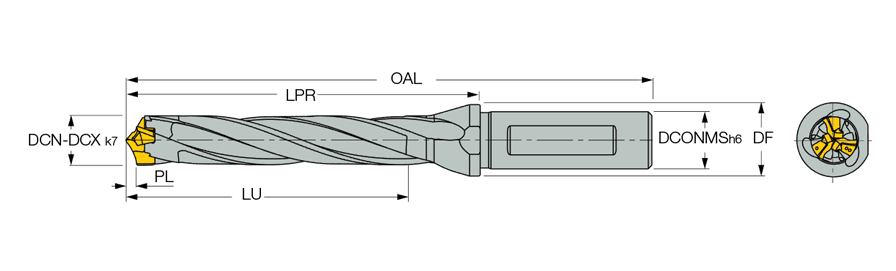

D3N A-5D : Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 5xD

Designation	DCN	DC	DCX	DCONMS	DF	LU	LPR	PL	OAL	SSC	ZEFF	CSP	CCMS	MIID	HAND	IFS	NOF	GICAT
D3N 120-060-16A-5D	12.00	12.00~	12.40	16.00	20.00	62.71	84.92	2.710	132.92	12	3~	1~	ZYL11G1600h$06~	H3P 120	~	~	3~	3316788
D3N 125-062-16A-5D	12.50	12.50~	12.90	16.00	20.00	65.21	88.17	2.710	136.17	12	3~	1~	ZYL11G1600h$06~	H3P 125	~	~	3~	3335712
D3N 130-065-16A-5D	13.00	13.00~	13.40	16.00	20.00	67.91	92.08	2.910	140.08	13	3~	1~	ZYL11G1600h$06~	H3P 130	~	~	3~	3335713
D3N 135-068-16A-5D	13.50	13.50~	13.90	16.00	20.00	70.41	95.33	2.910	143.33	13	3~	1~	ZYL11G1600h$06~	H3P 135	~	~	3~	3335714
D3N 140-070-16A-5D	14.00	14.00~	14.40	16.00	20.00	73.10	99.08	3.100	147.08	14	3~	1~	ZYL11G1600h$06~	H3P 140	~	~	3~	3335715
D3N 145-073-16A-5D	14.50	14.50~	14.90	16.00	20.00	75.60	102.33	3.100	150.33	14	3~	1~	ZYL11G1600h$06~	H3P 145	~	~	3~	3335716
D3N 150-075-20A-5D	15.00	15.00~	15.90	20.00	25.00	78.47	106.16	3.470	156.16	15	3~	1~	ZYL11G2000h$06~	H3P 150	~	~	3~	3335717
D3N 160-080-20A-5D	16.00	16.00~	16.90	20.00	25.00	83.44	113.25	3.440	163.25	16	3~	1~	ZYL11G2000h$06~	H3P 160	~	~	3~	3316789
D3N 170-085-20A-5D	17.00	17.00~	17.90	20.00	25.00	88.52	120.22	3.520	170.22	17	3~	1~	ZYL11G2000h$06~	H3P 170	~	~	3~	3335718
D3N 180-090-25A-5D	18.00	18.00~	18.90	25.00	32.00	93.90	127.36	3.900	183.36	18	3~	1~	ZYL11G2500h$06~	H3P 180	~	~	3~	3335719
D3N 190-095-25A-5D	19.00	19.00~	19.90	25.00	32.00	99.10	134.42	4.100	190.42	19	3~	1~	ZYL11G2500h$06~	H3P 190	~	~	3~	3316790
D3N 200-100-25A-5D	20.00	20.00~	20.90	25.00	32.00	104.32	141.24	4.320	197.24	20	3~	1~	ZYL11G2500h$06~	H3P 200	~	~	3~	3335721
D3N 210-105-25A-5D	21.00	21.00~	21.90	25.00	32.00	109.55	148.30	4.550	204.30	21	3~	1~	ZYL11G2500h$06~	H3P 210	~	~	3~	3335723
D3N 220-110-25A-5D	22.00	22.00~	22.90	25.00	32.00	114.69	155.62	4.690	211.62	22	3~	1~	ZYL11G2500h$06~	H3P 220	~	~	3~	3335724
D3N 230-115-32A-5D	23.00	23.00~	23.90	32.00	42.00	119.91	162.50	4.910	222.50	23	3~	1~	ZYL11G3200h$06~	H3P 230	~	~	3~	3335725
D3N 240-120-32A-5D	24.00	24.00~	24.90	32.00	42.00	125.21	169.54	5.210	229.54	24	3~	1~	ZYL11G3200h$06~	H3P 240	~	~	3~	3335726
D3N 250-125-32A-5D	25.00	25.00~	25.90	32.00	42.00	130.20	177.10	5.200	237.10	25	3~	1~	ZYL11G3200h$06~	H3P 250	~	~	3~	3316791

Do not mount smaller drilling heads other than the specified range of the drill body
