TJS HPC HSK : High-Pressure Coolant driven HSM spindle with HSK shank, for small diameter cutting tools. Can be used for semi finish and finish machining applications.(-)High-Pressure Coolant Driven HSM Spindle with HSK Shank for Small Diameter Cutting Tools(+)

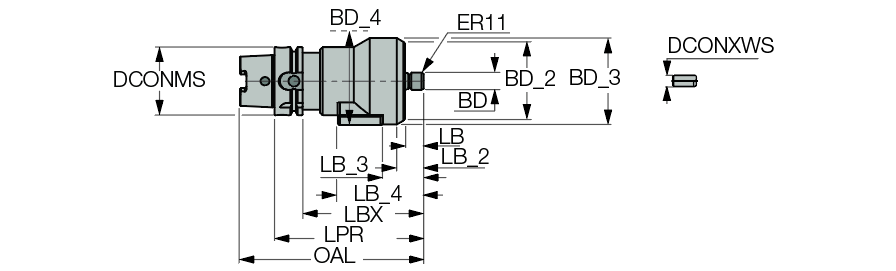

Representative Image

For ER-SPR collets use "AA" type only

Representative Image

For ER-SPR collets use "AA" type only

Designation		GIFUT5	BD	BD_2	BD_3	BD_4	LB	LB_2	LB_3	LB_4	LBX	DCONMS	DCONXWS	DCX	LF	LPR	OAL	RPMN	RPMX	DCP		CSP	CCMS	GICAT	GIREM	giic
TJS HPC HSK A63		0	16.00	71.30	80.00	81.00	17.30	24.90	37.80	79.40	112.00	63.00	7.00	5.0~	121.00	138.00	170.00	25000	45000	0	2.00	1~	HSK01C0630$$$$~	3339543		0

Coolant pressure 15-70 bar and flow rate 10-22 l/min
RPM range 20,000-45,000 RPM
The spindle provides only external strong coolant jet around the tool
Battery not supplied
